ZEEKR 001
MOTVE Brake MX8 ME4 in gold with black lettering
Starting price: ¥9800.
Product category: MOTVE Maituo Brake Caliper Kit.

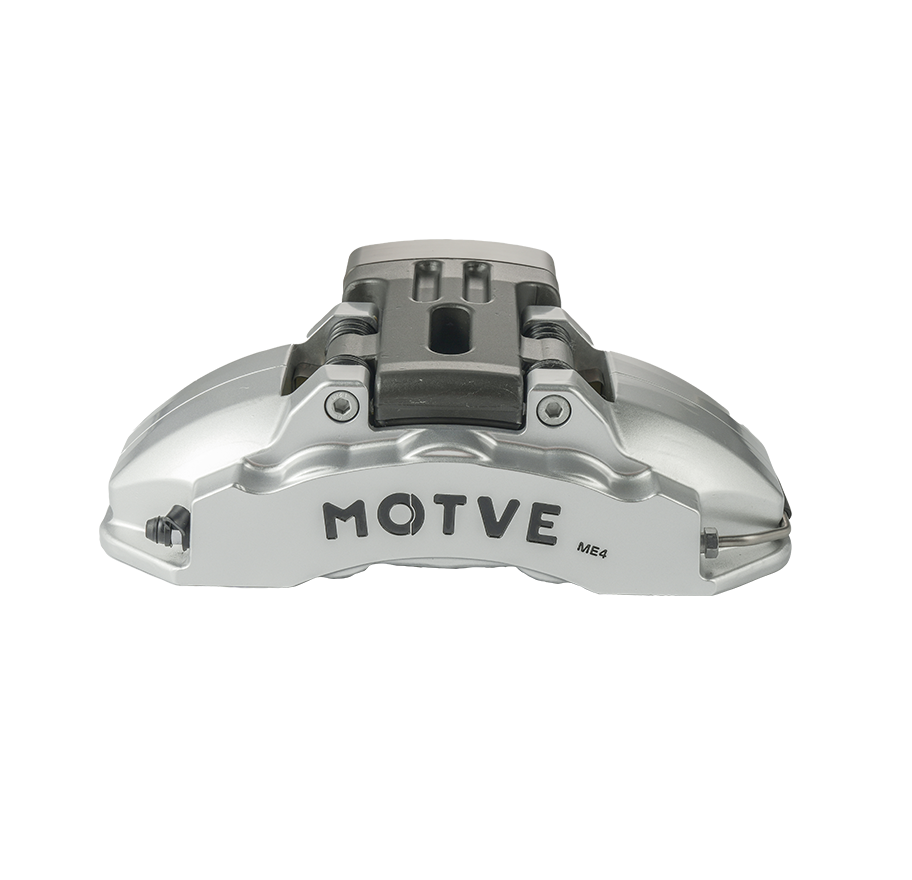

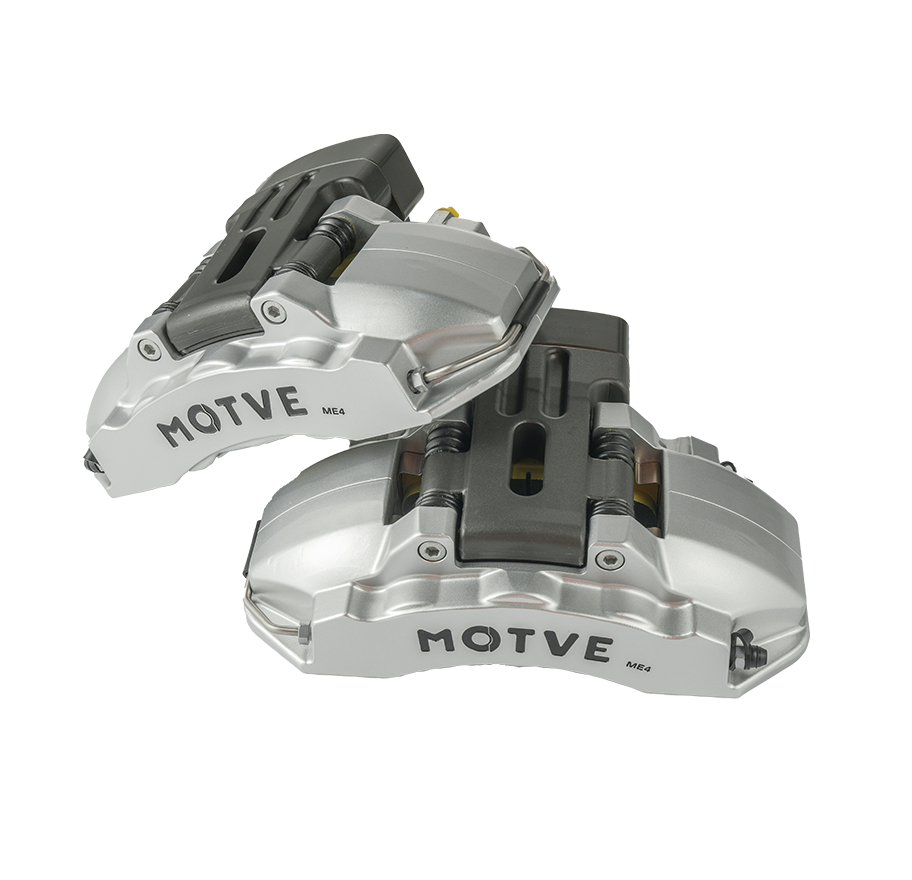

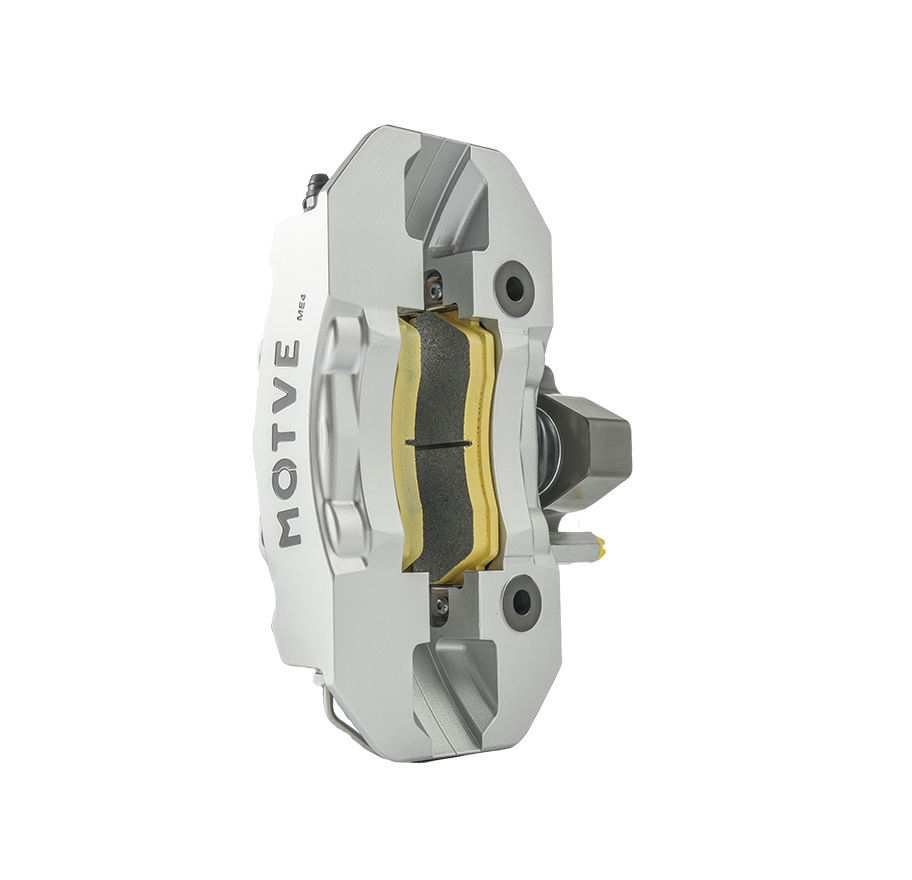

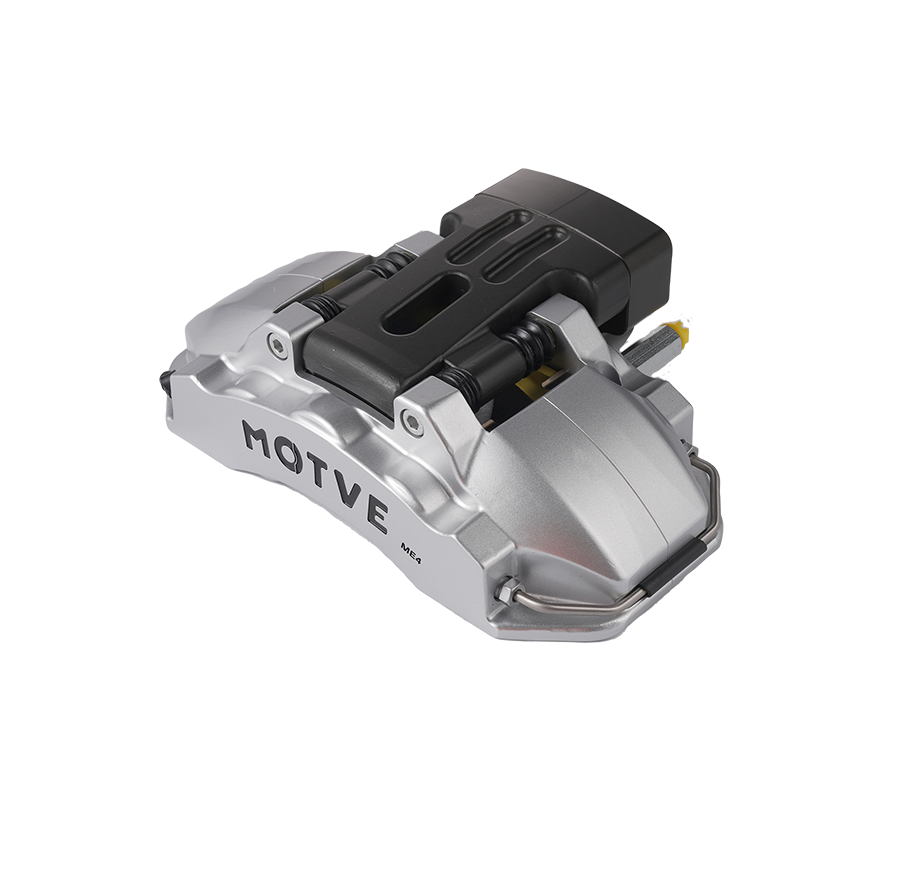

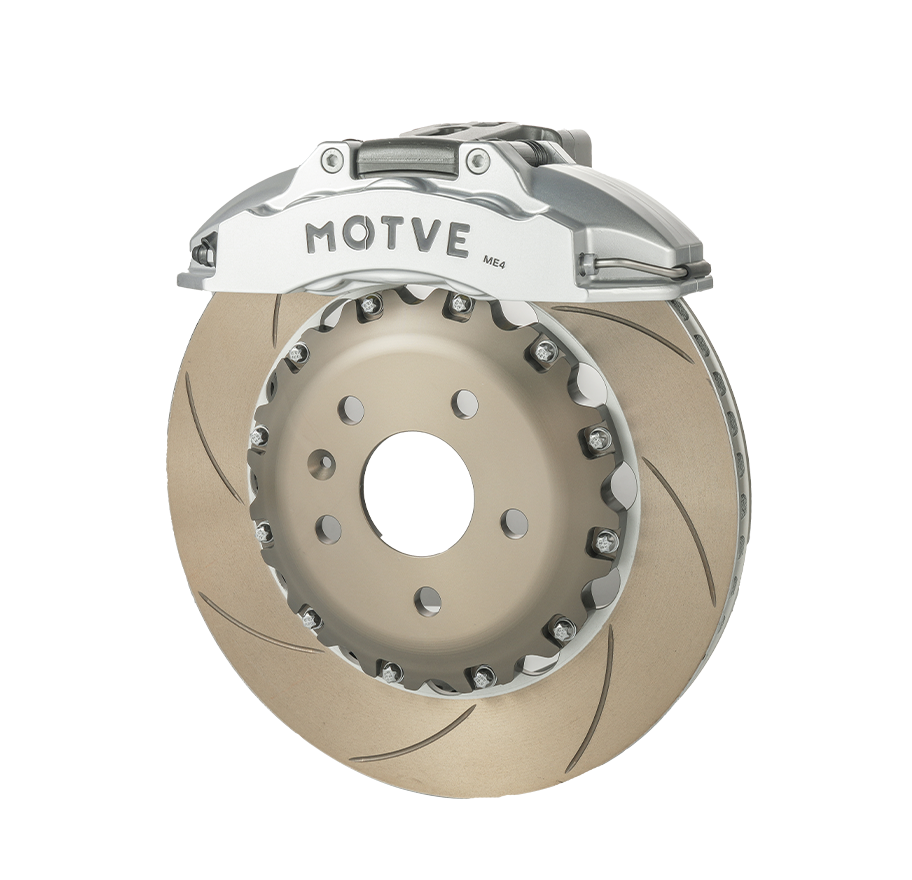

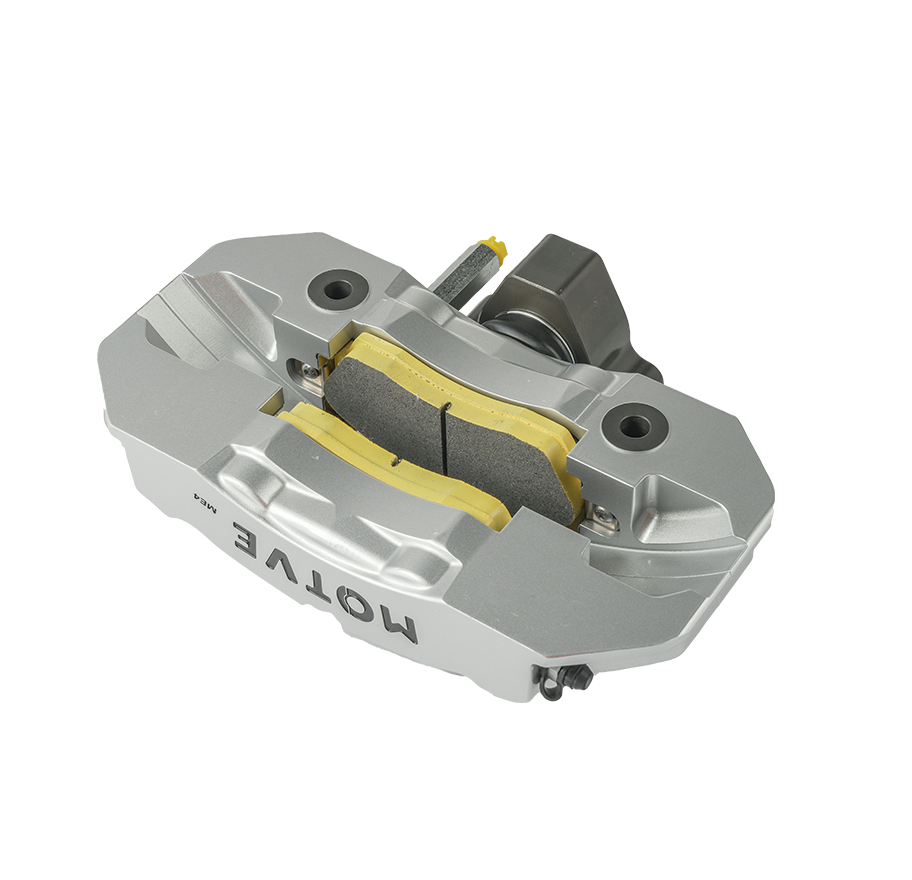

ME4 Mechatronic Integrated Rear Four-Piston Caliper.

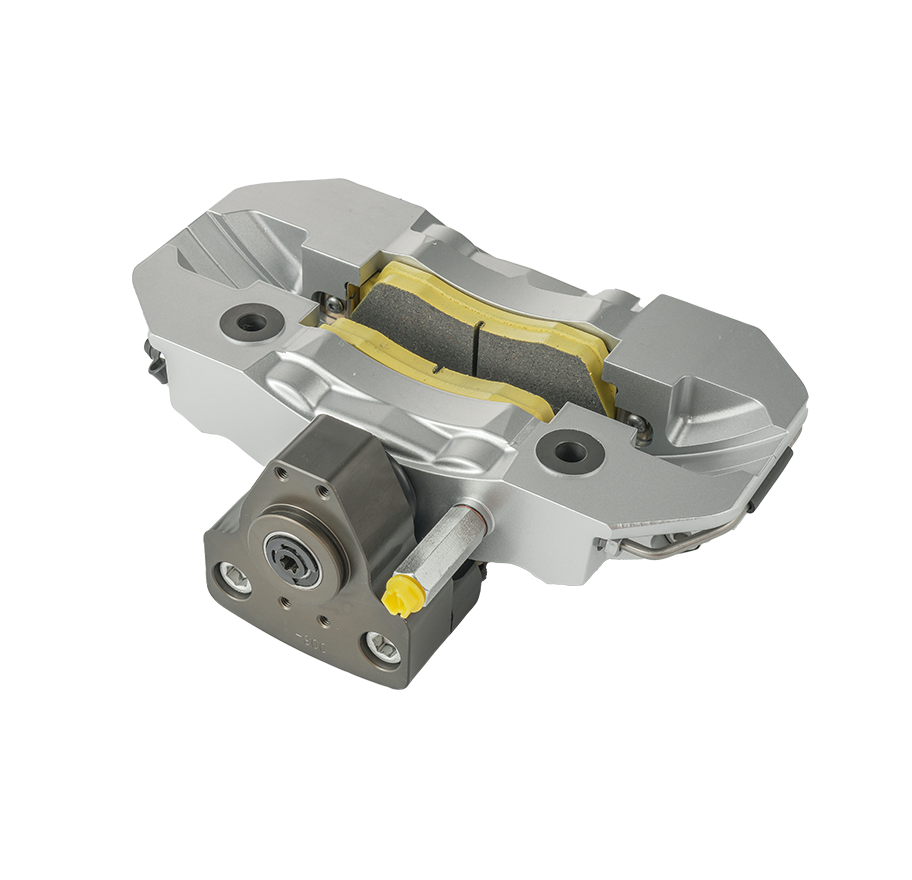

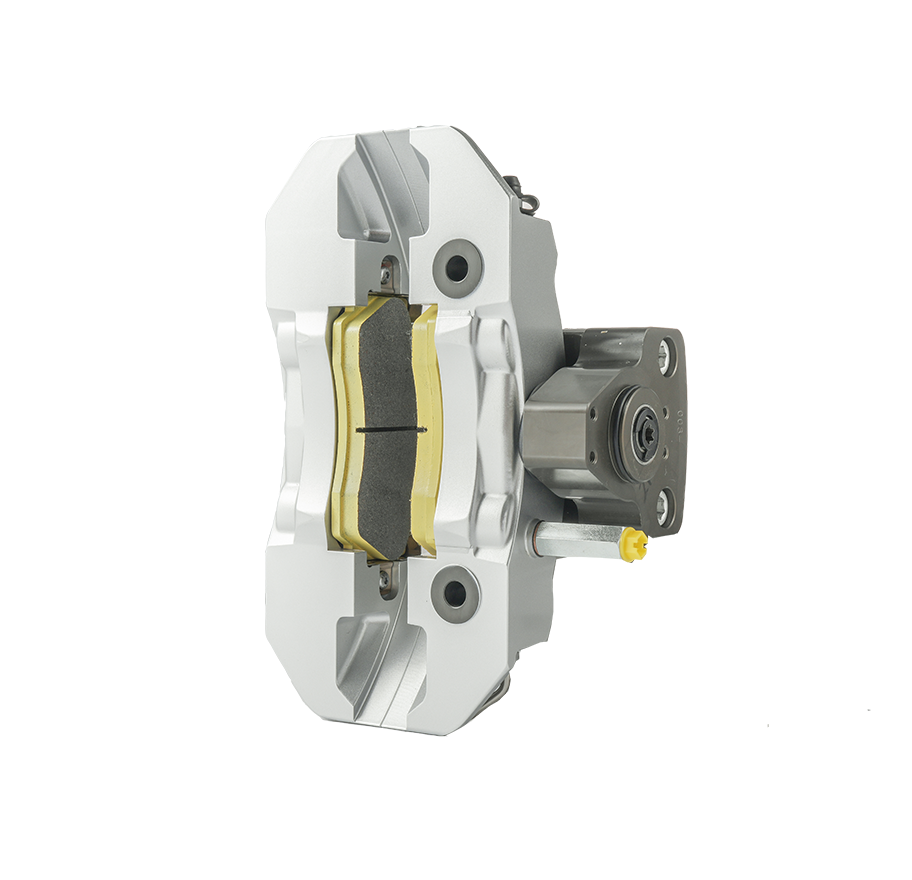

The ME4 is a mechanical and electronic integrated rear caliper, suitable for rear wheel electronic modification solutions.

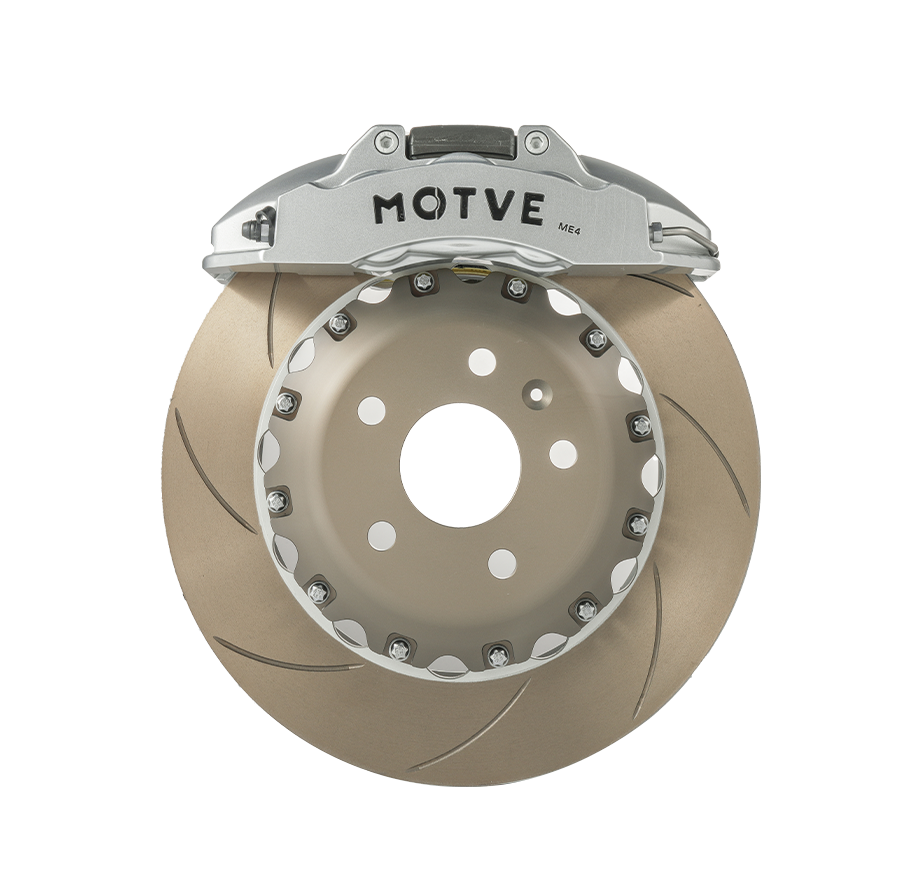

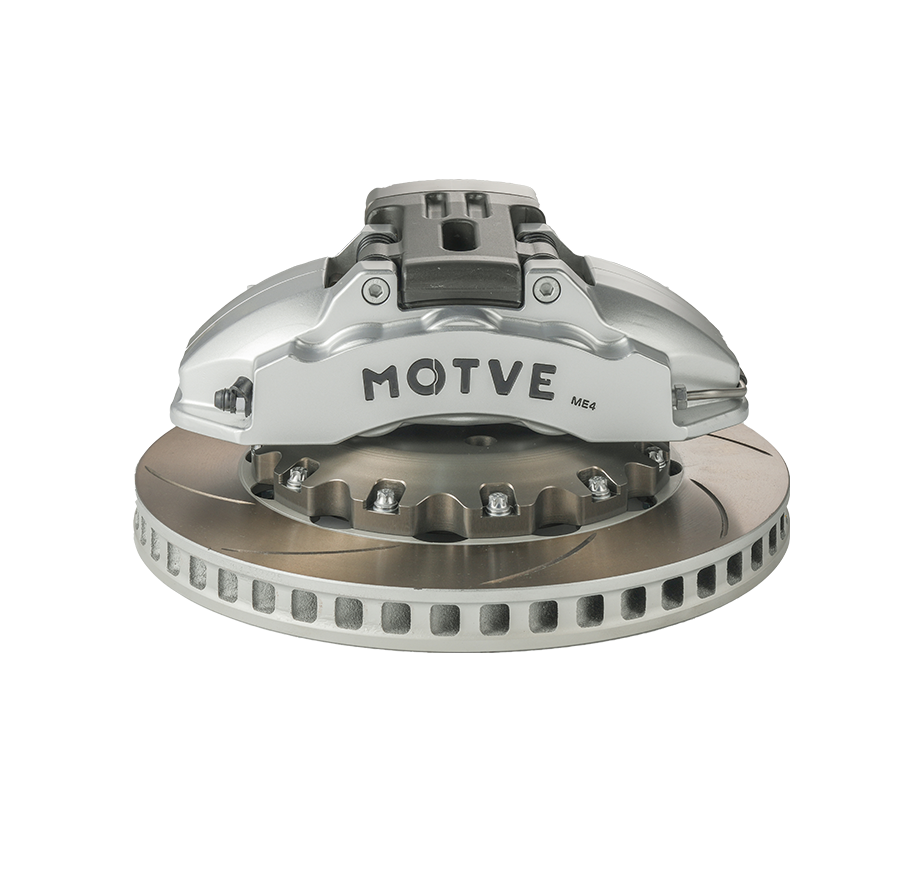

Components of the Maituo Brake Kit: caliper, brake pads, brake disc, hat and bracket, brake lines, brake fluid.
1. Caliper main structure: 5-year warranty. Warranty coverage: external defects, deformation.
2. Brake pads: Replacement for manufacturing defects. Warranty coverage: detachment of friction material.
3. Brake disc: Replacement within 3 months of installation if disc warping or vibration occurs.
4. Brake lines: 2-year warranty. Warranty coverage: cracking or bulging under correct installation and normal use.
| Piston diameter | Piston area | Brake disc diameter | Brake disc thickness |
| 4*27mm | 22.7cm² | φ355mm φ380mm φ400mm | 28mm |
| Caliper weight | Inlet port thread specification | Brake pad area | Caliper length, width, and height |
| 5.1kg | M10*1 | 60cm² | 289mm*150.5mm*83.5mm |
MOTVE Braking, Beyond Performance.
