ZEEKR 001
MOTVE Brake MX8 ME4 in gold with black lettering
Starting price: ¥28888
Product category: MOTVE Maituo Brake Caliper Kit

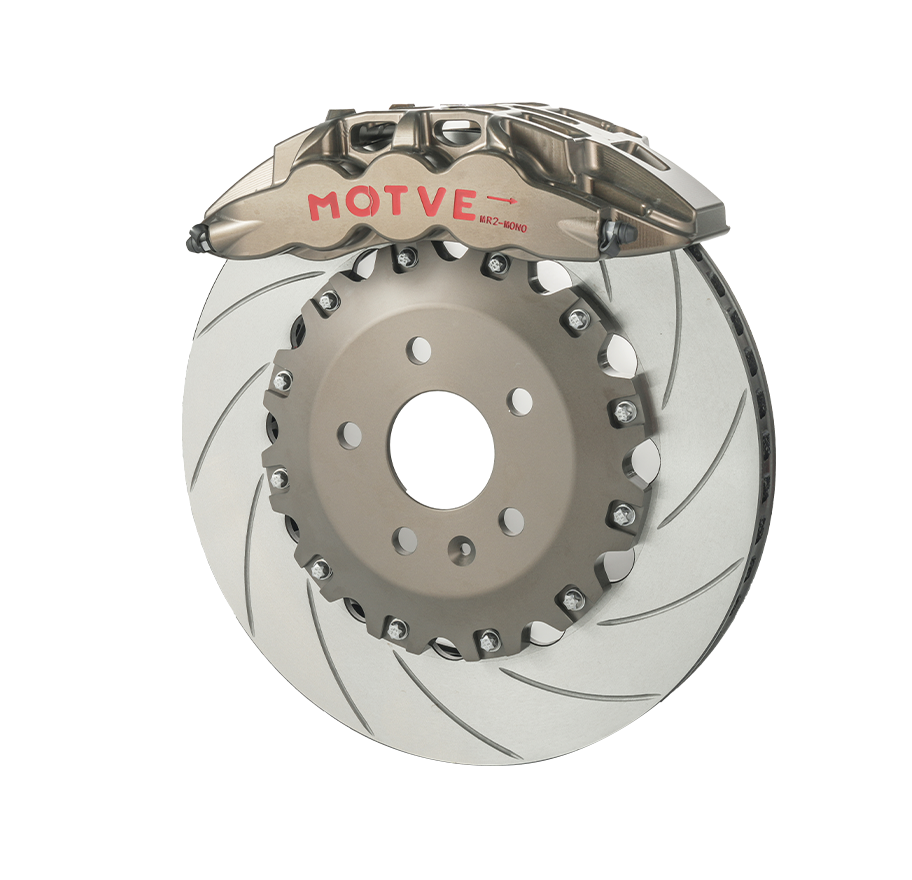

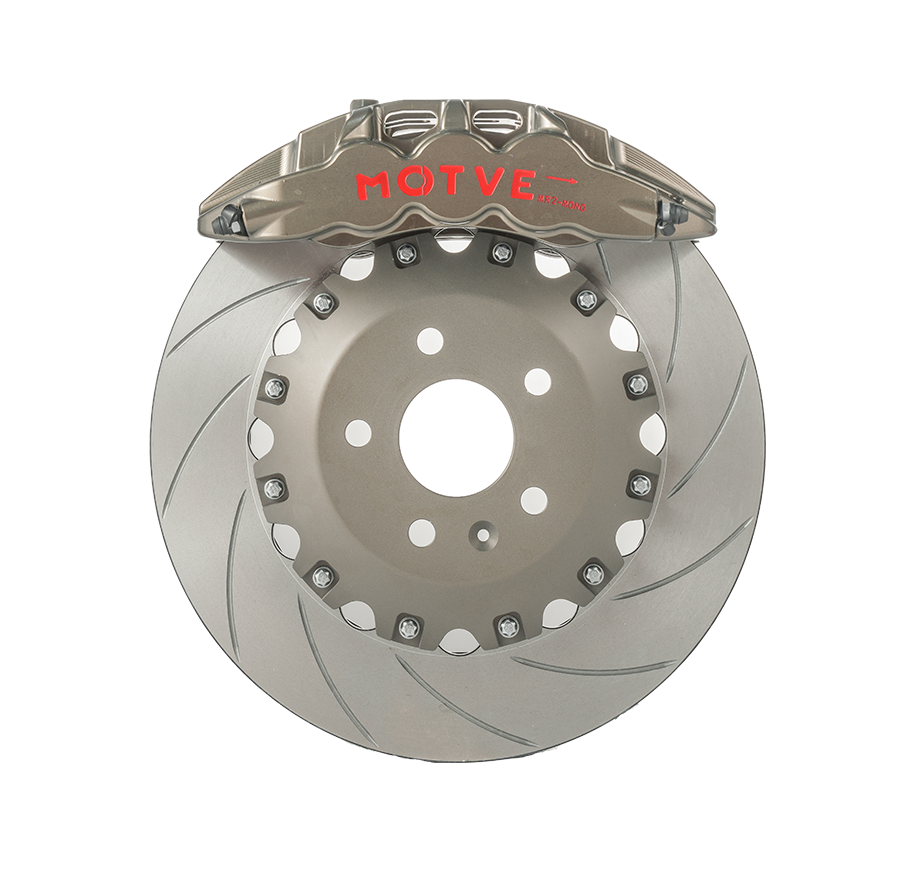

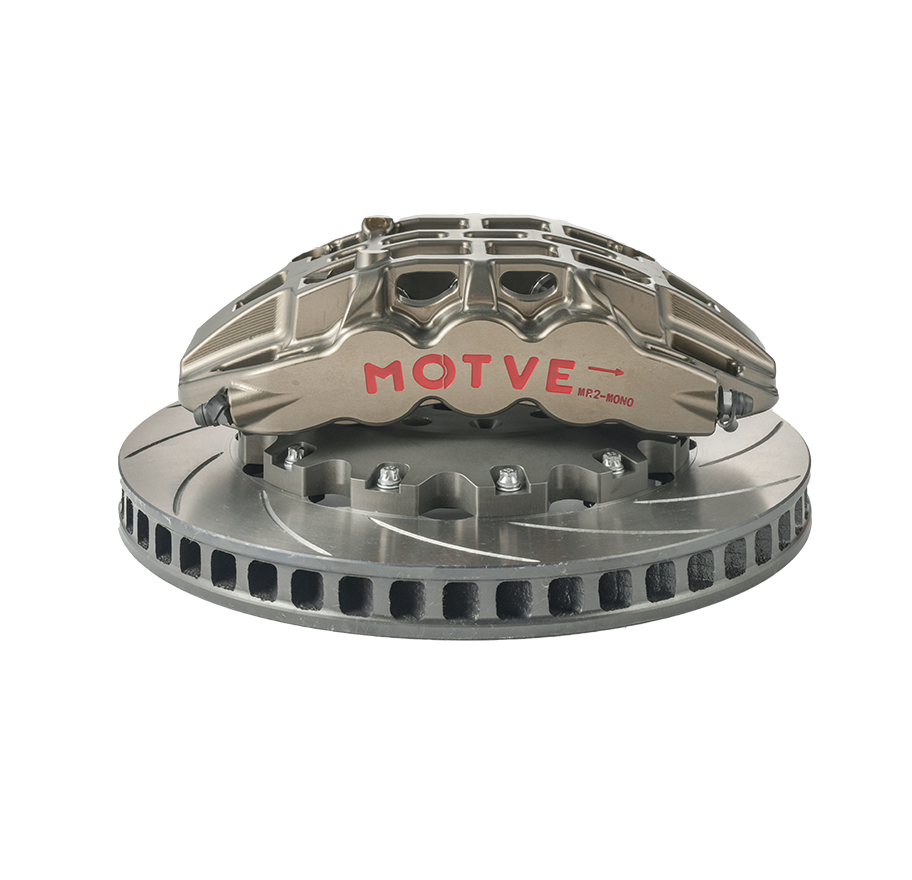

MR2-MONO7 Aluminum One-Piece Forged Internal Oil Passage Six-Piston
The MR2 is a one-piece forged fully machined six-piston racing caliper with internal oil passage design, high strength, good heat dissipation, and competition stainless steel ventilated pistons, suitable for racing applications.
Components of the Maituo Brake Kit: caliper, brake pads, brake disc, hat and bracket, brake lines, brake fluid.
1. Caliper main structure: 5-year warranty. Warranty coverage: external defects, deformation.
2. Brake pads: Replacement for manufacturing defects. Warranty coverage: detachment of friction material.
3. Brake disc: Replacement within 3 months of installation if disc warping or vibration occurs.
4. Brake lines: 2-year warranty. Warranty coverage: cracking or bulging under correct installation and normal use.
| Piston diameter | Piston area | Brake disc diameter | Brake disc thickness |
| 2*27mm 2*31.8mm 2*38mm | 51cm² | φ355mm φ378mm φ390mm | 32mm 34mm |
| Caliper weight | Inlet port thread specification | Brake pad area | Caliper length, width, and heigh |
| 4.25kg | M10*1 | 90cm² | 302*193*86mm |
MOTVE Braking, Beyond Performance.
