Starting price: ¥5480
Product category: MOTVE Maituo Brake Caliper Kit

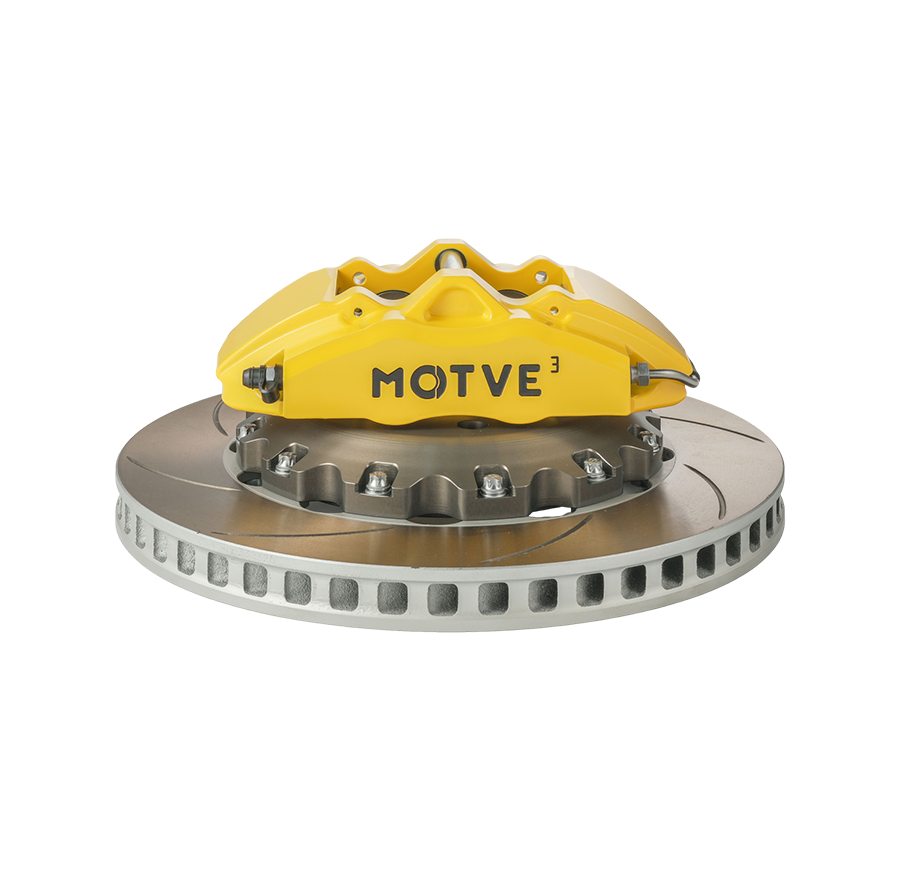

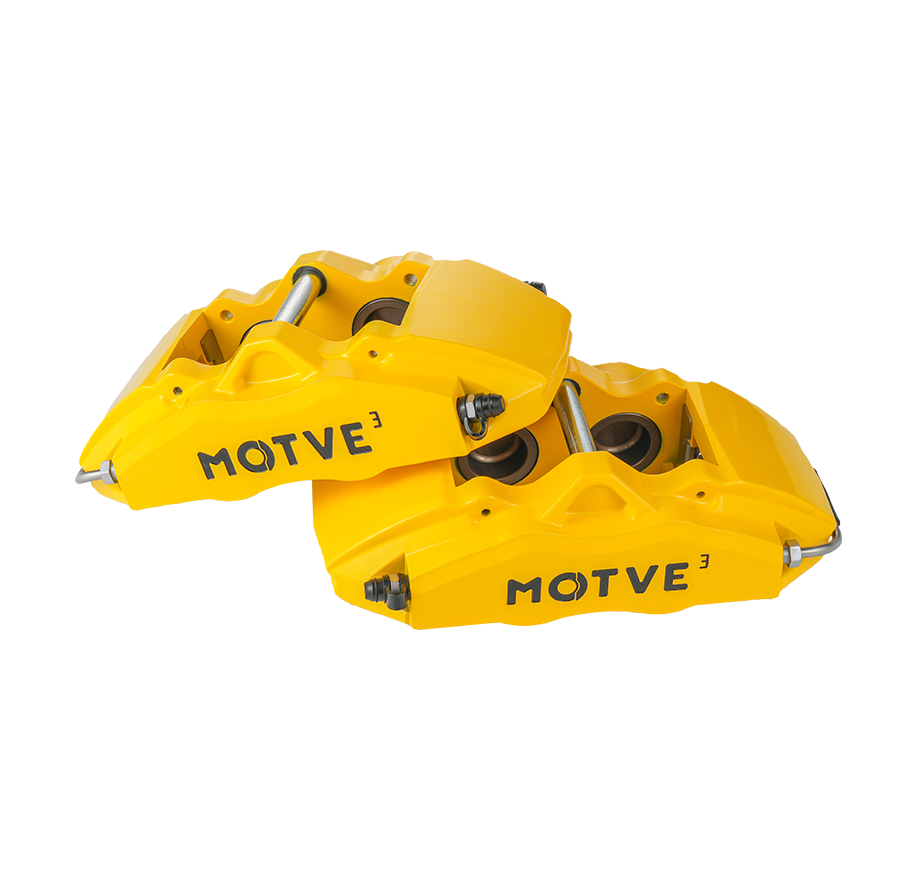

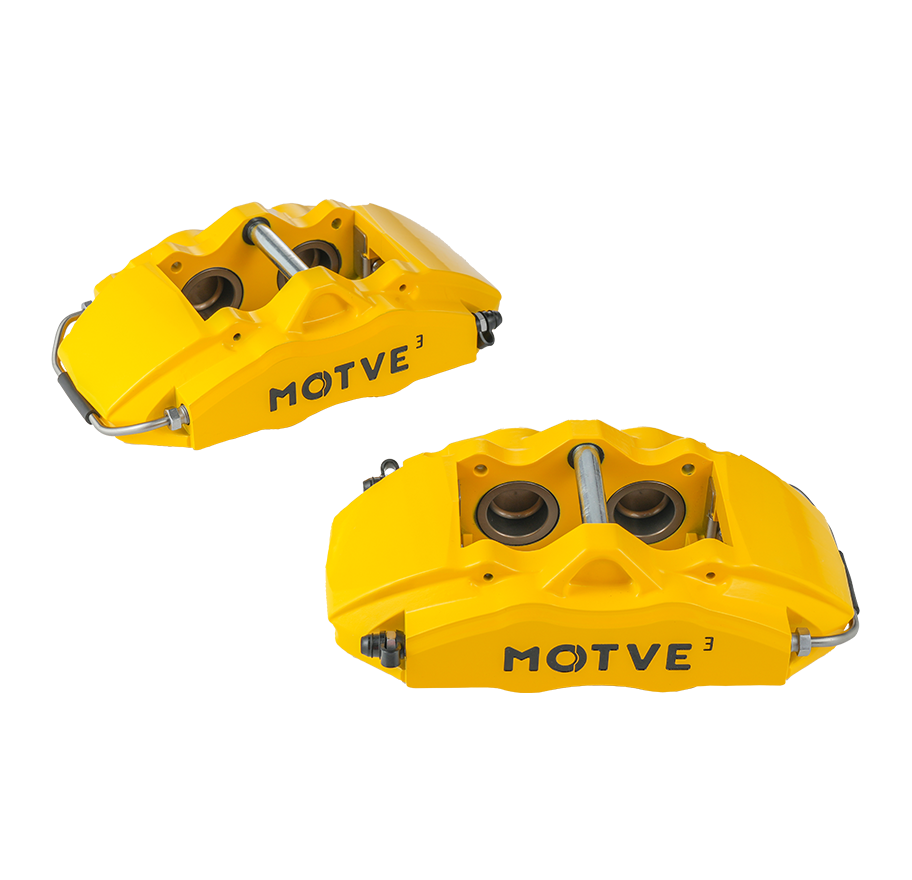

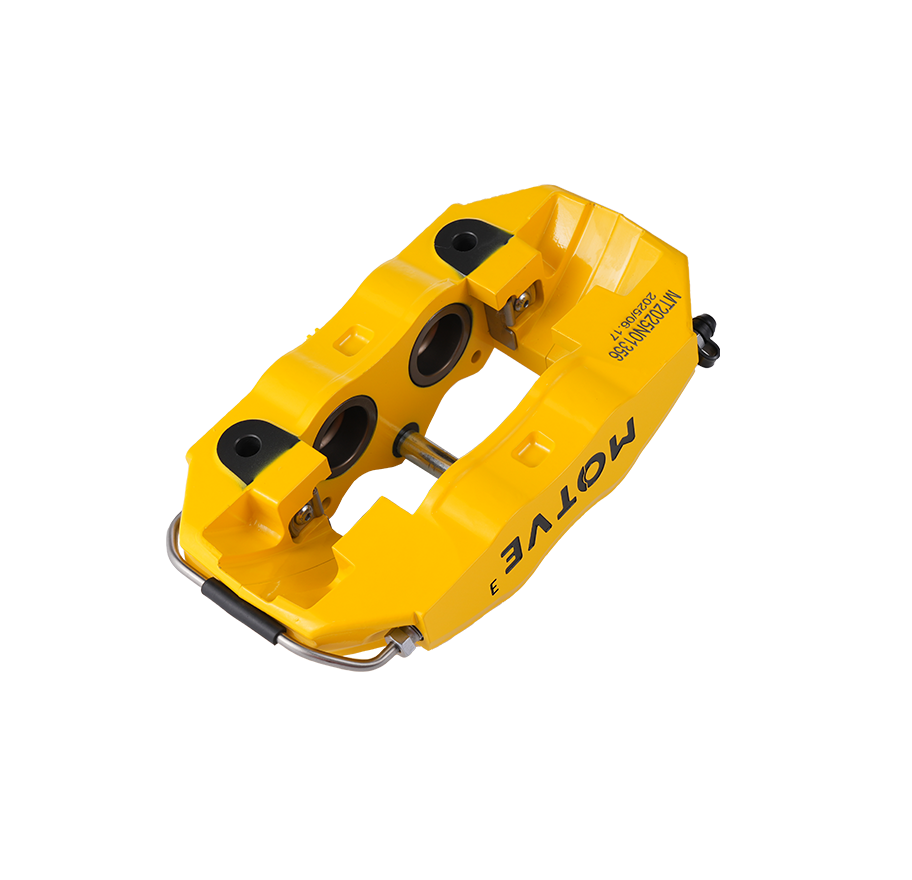

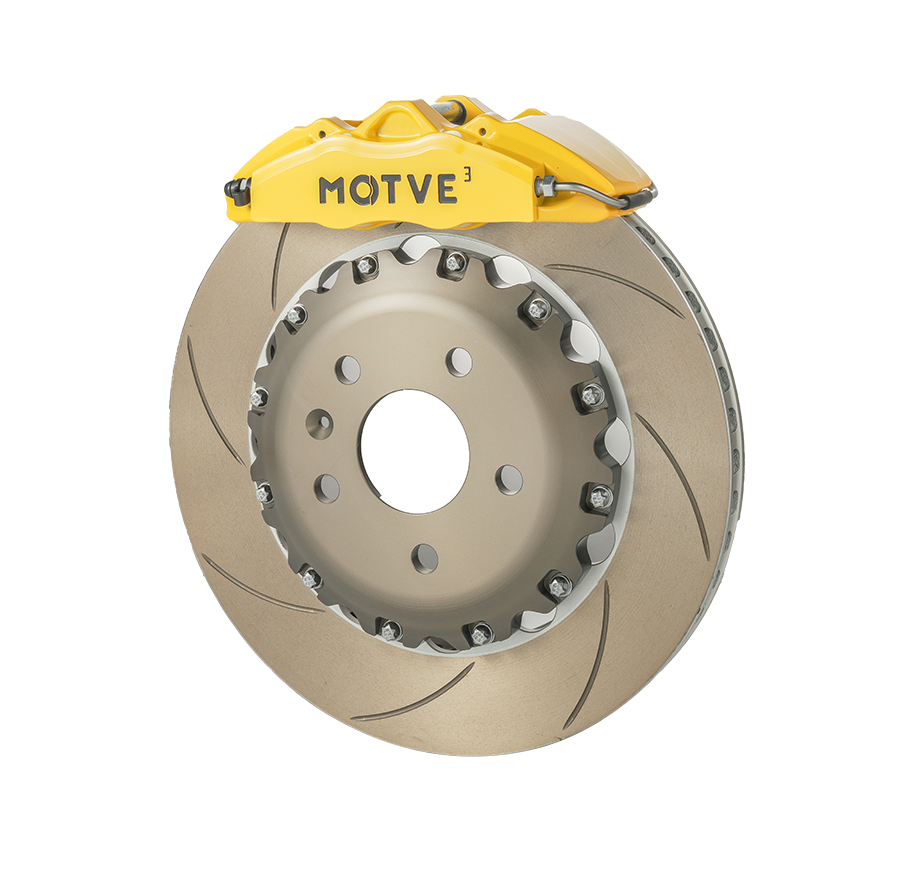

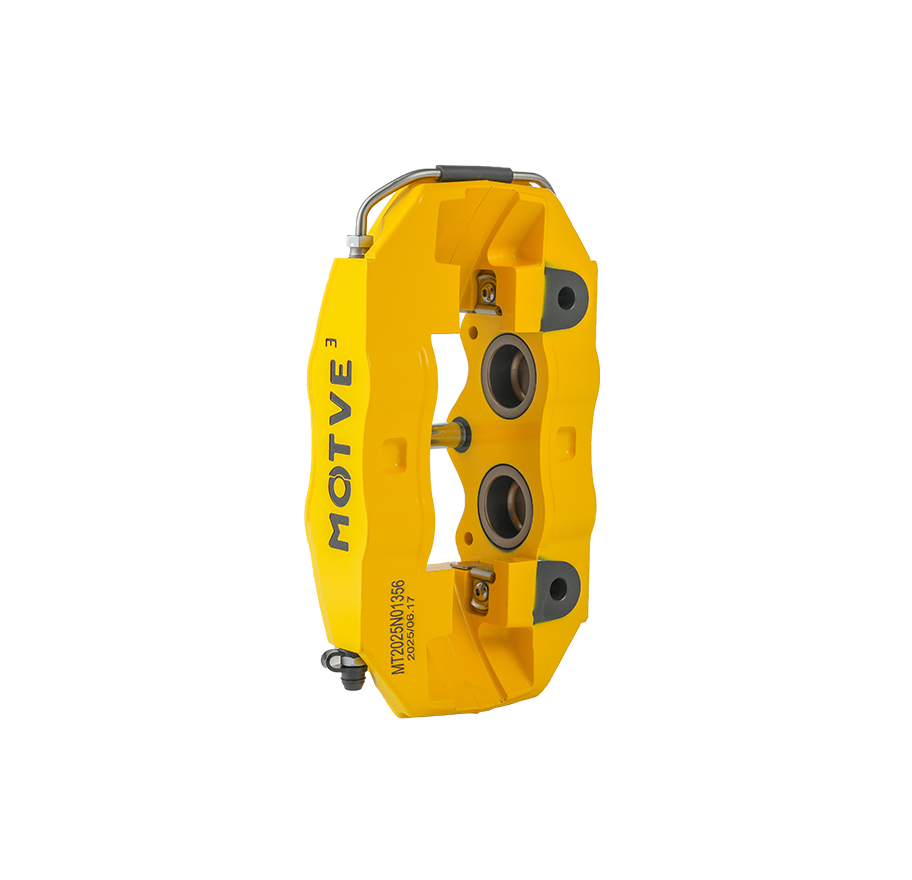

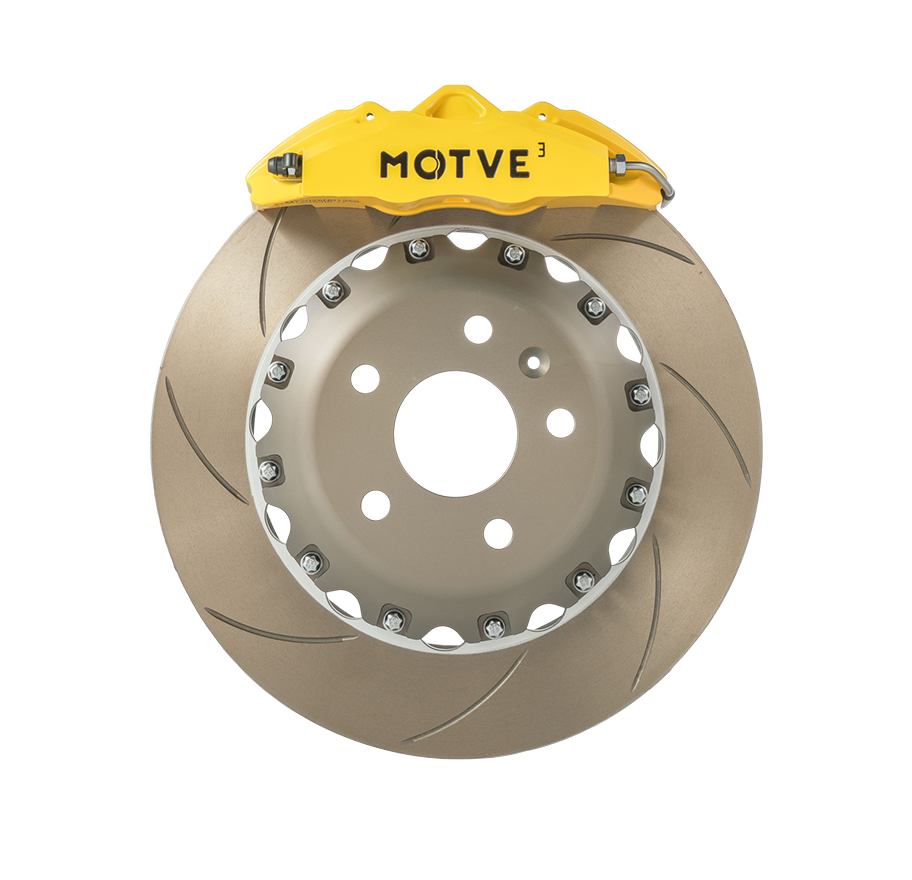

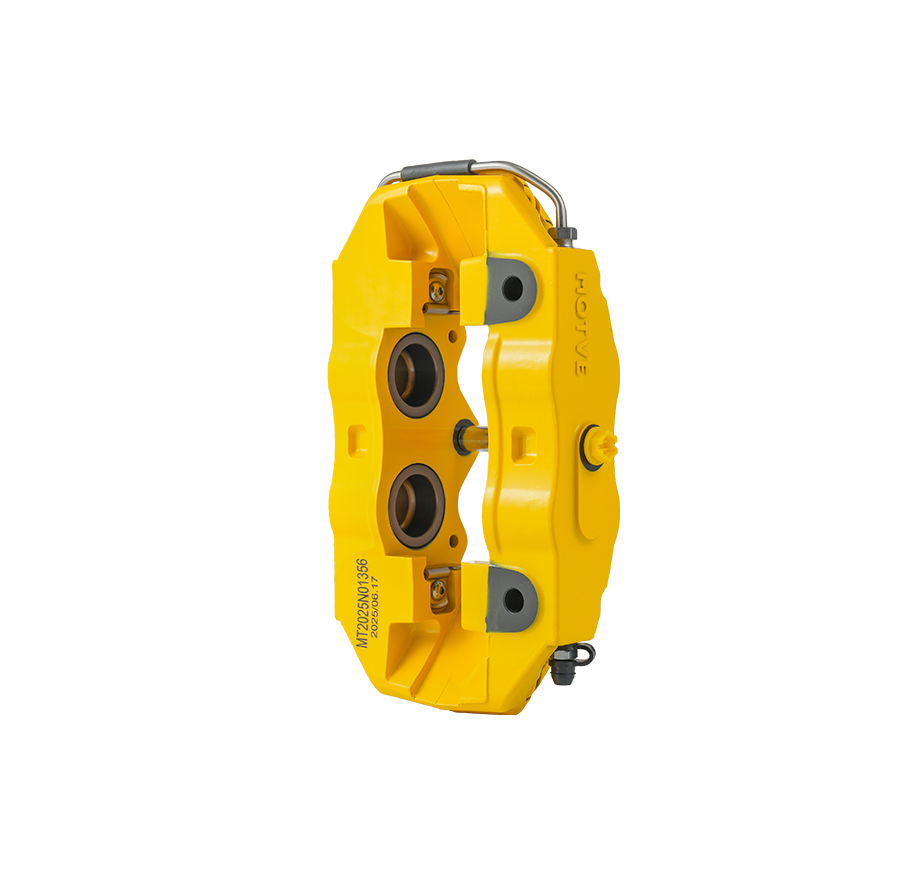

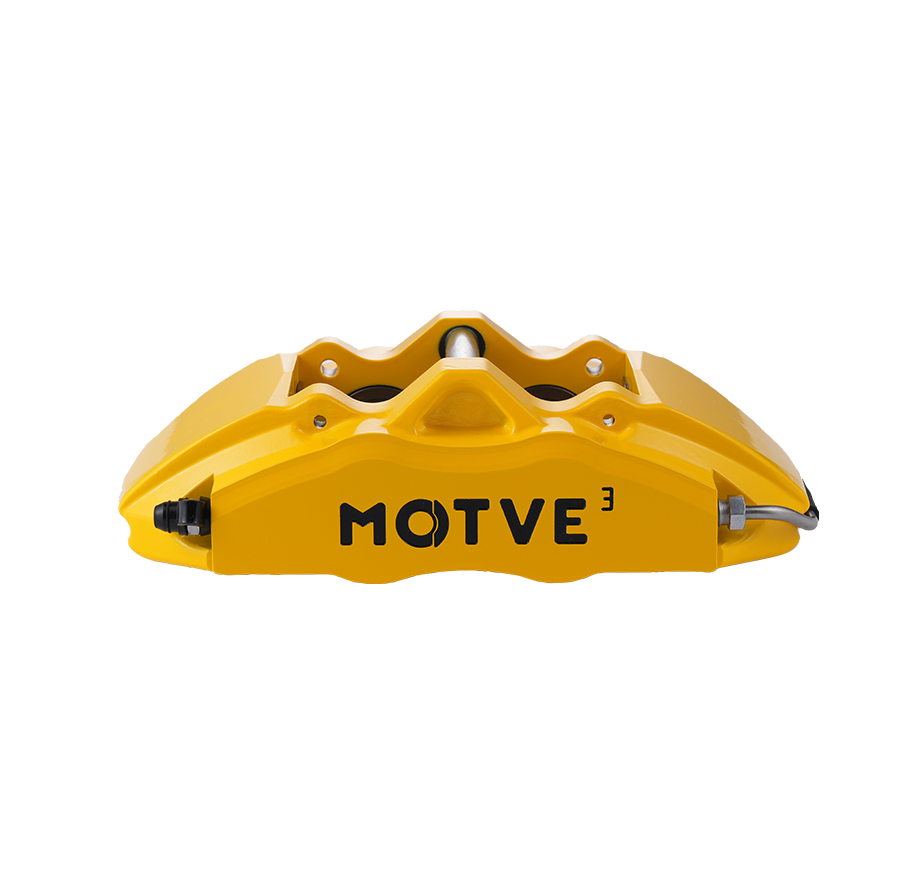

MT3 · Small Four-Piston
Split forging process, lightweight structure, quick-response piston design, widely suitable for A0-segment vehicles.
Components of the Maituo Brake Kit: caliper, brake pads, brake disc, hat and bracket, brake lines, brake fluid.
1. Caliper main structure: 5-year warranty. Warranty coverage: external defects, deformation.
2. Brake pads: Replacement for manufacturing defects. Warranty coverage: detachment of friction material.
3. Brake disc: Replacement within 3 months of installation if disc warping or vibration occurs.
4. Brake lines: 2-year warranty. Warranty coverage: cracking or bulging under correct installation and normal use.
| Piston diameter | Piston area | Brake disc diameter | Brake disc thickness |
| 4*38.1mm | 45.3cm² | φ285mm φ295mm | 24mm 25mm |
| Caliper weight | Inlet port thread specification | Brake pad area | Caliper length, width, and height |
| 2.2kg | M10*1 | 45.3cm² | 238*130.5*71.5mm |
| Applicable wheel hub size | Brake disc specification | Standard retail price | Price for optional racing pads + Goodridge brake lines |
| 15inches | 285MM | ¥5480 | ¥6080 |
| 16inches | 295MM | ¥5480 | ¥6080 |
