ZEEKR 001
MOTVE Brake MX8 ME4 in gold with black lettering
Starting price: ¥6980

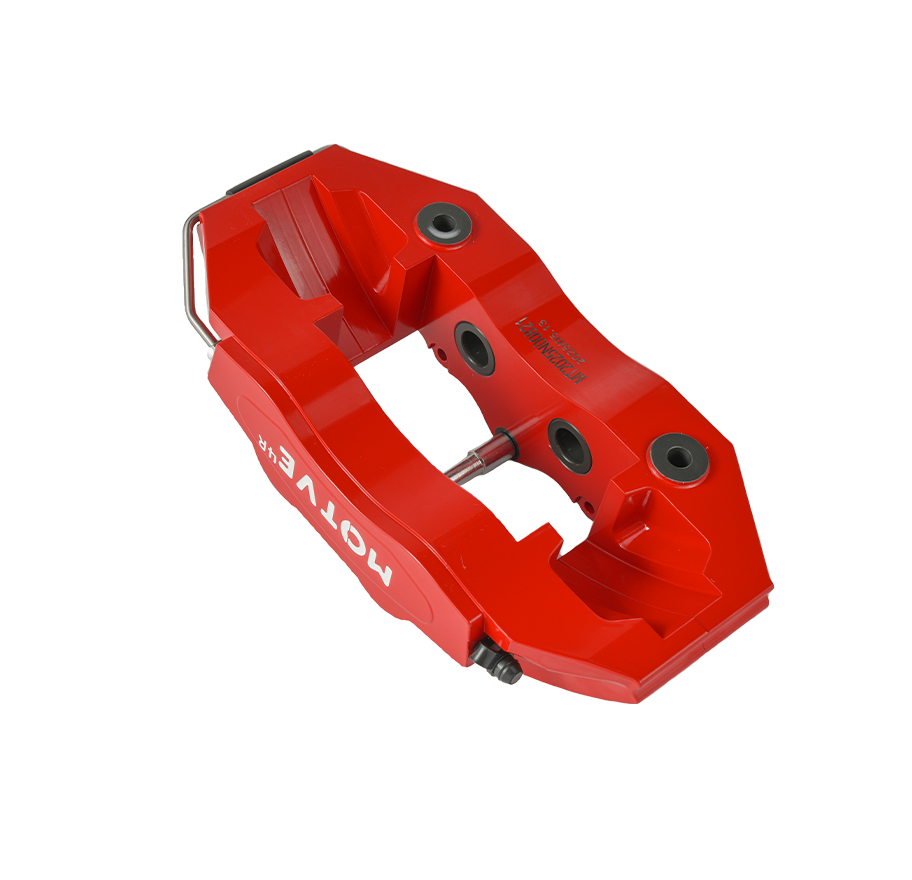

Product category: MOTVE Maituo Brake Caliper Kit

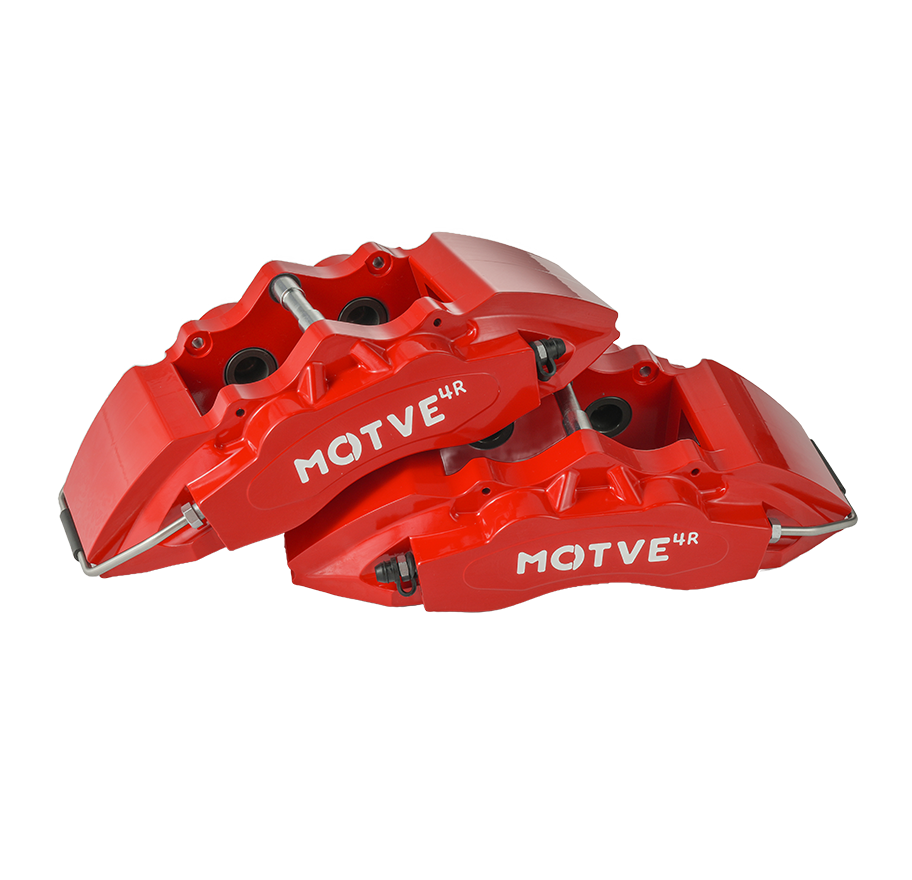

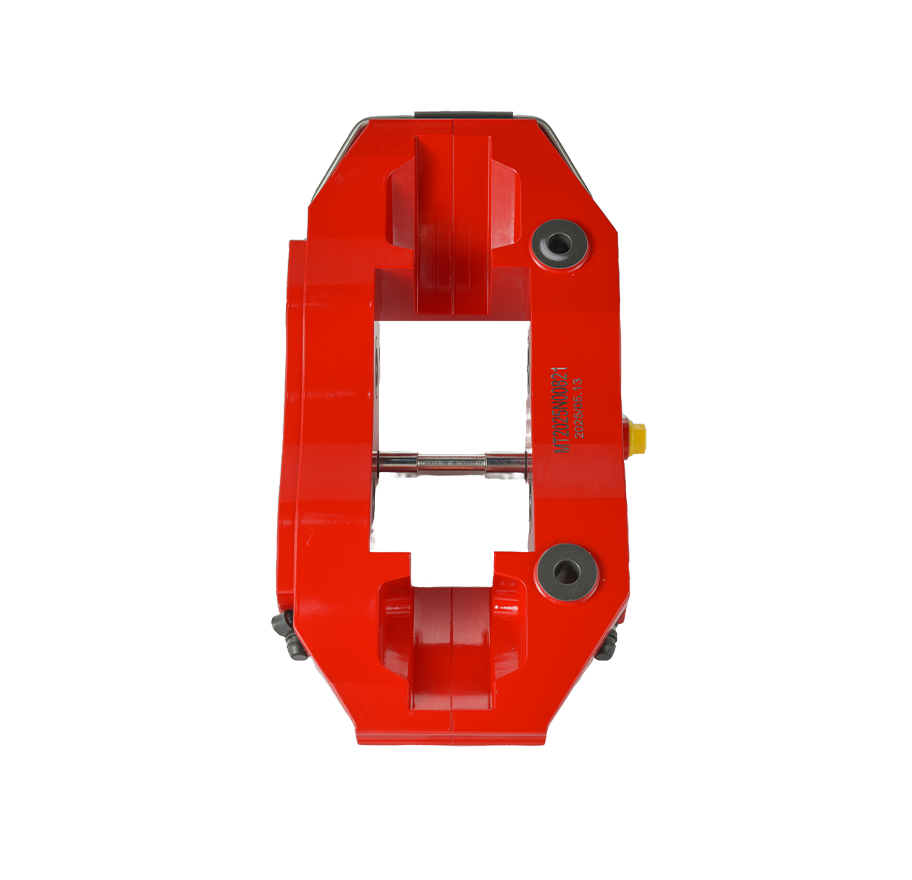

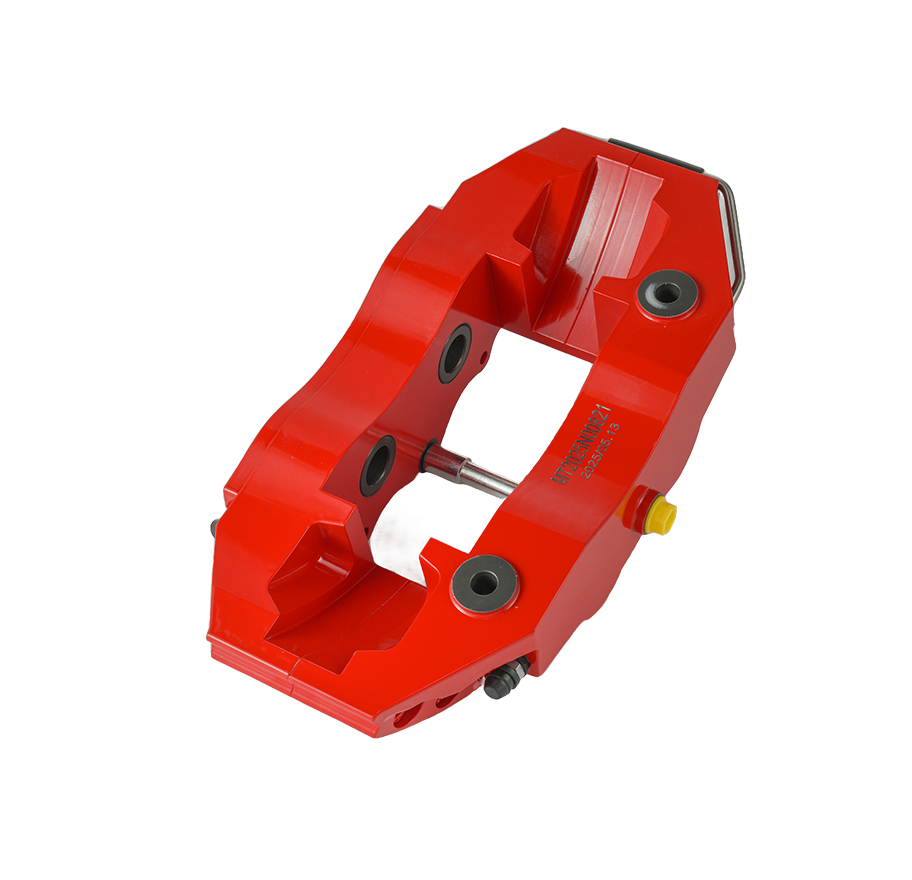

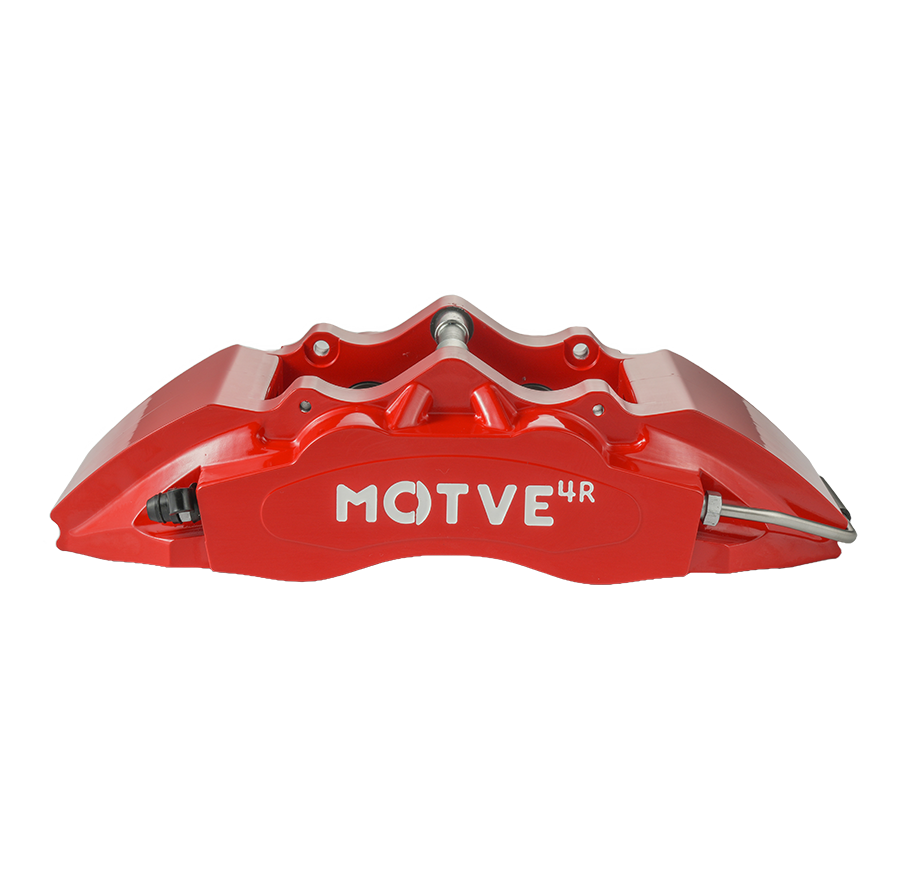

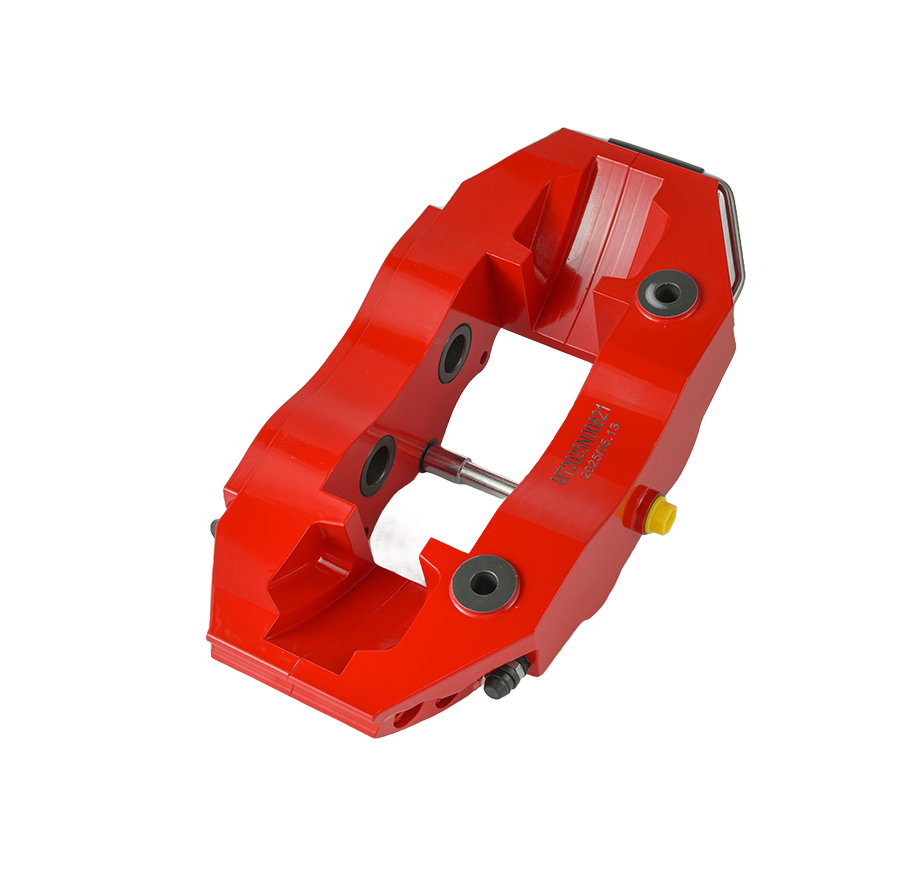

MT4 · Four-Piston (MT4R Rear Four-Piston)
Split forging process, lightweight structure, external dustproof design, quick-response piston design, widely suitable for A-segment vehicles.

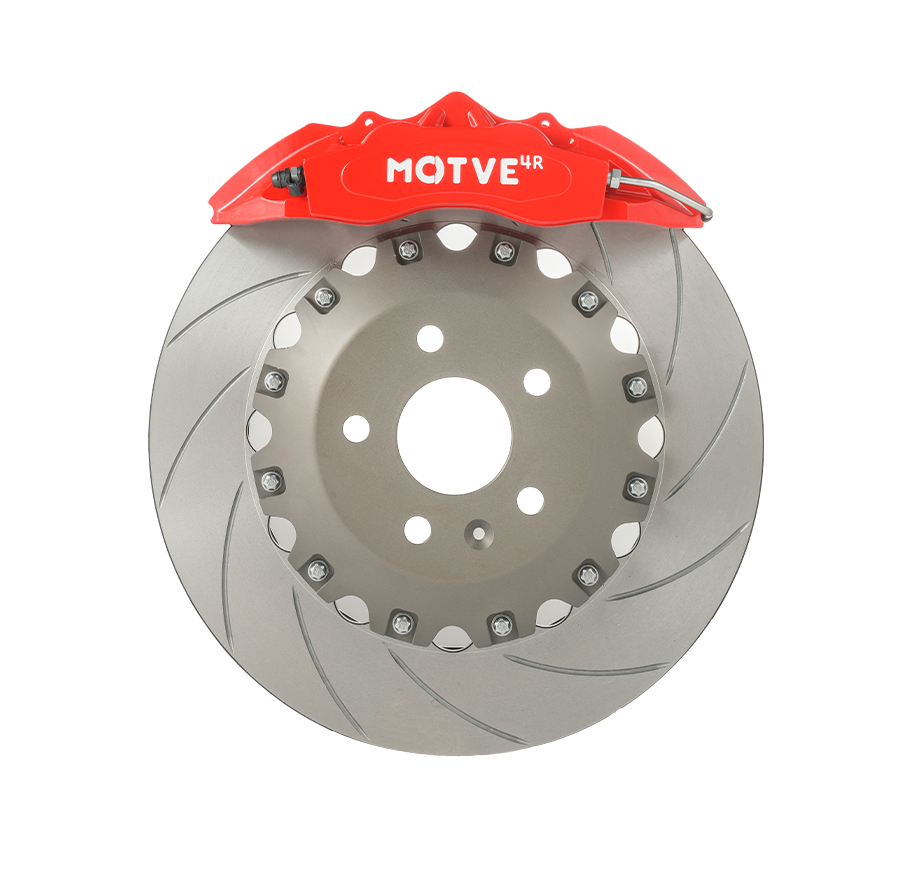

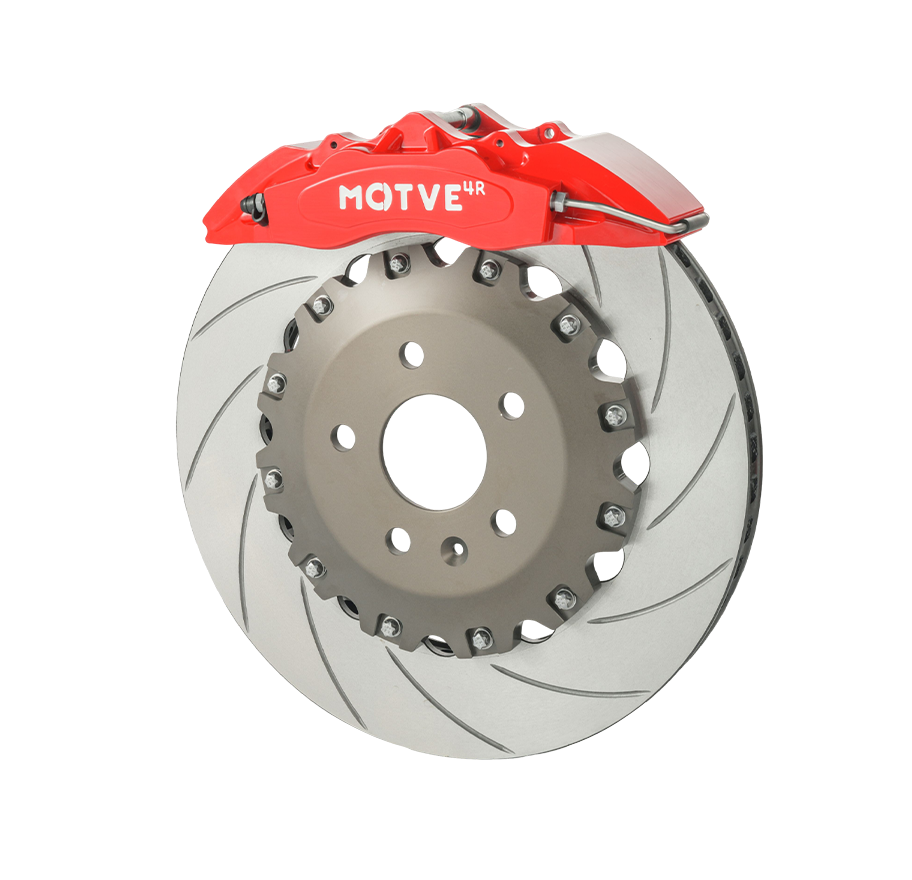

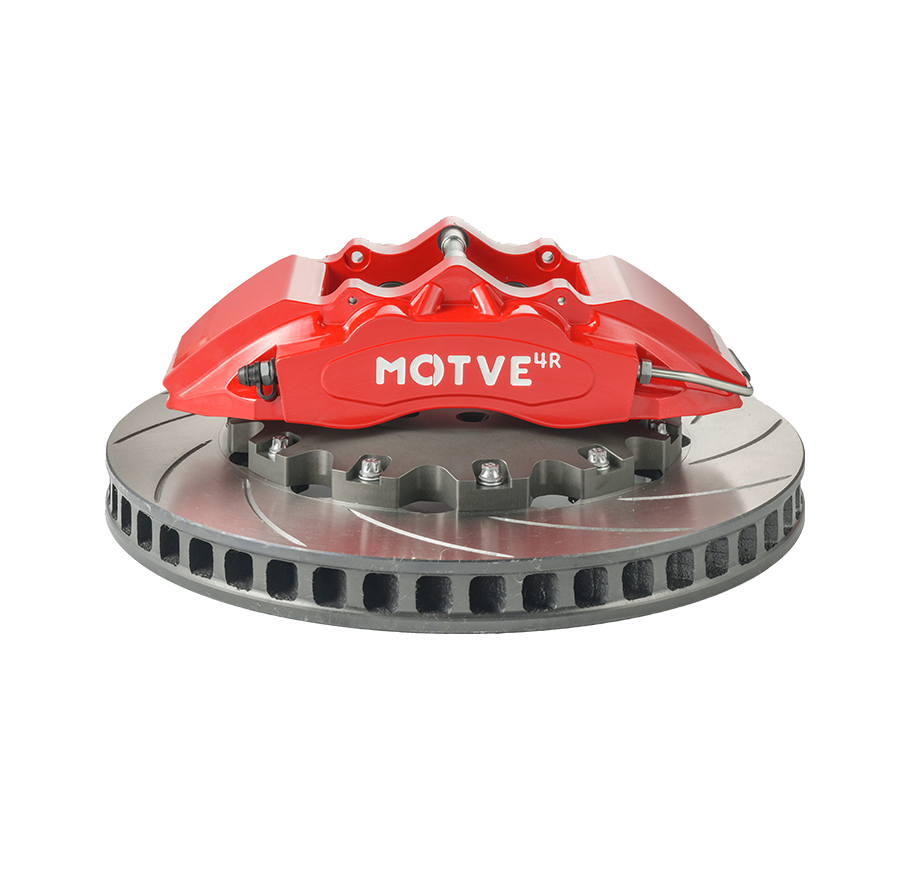

Components of the Maituo Brake Kit: caliper, brake pads, brake disc, hat and bracket, brake lines, brake fluid.
1. Caliper main structure: 5-year warranty. Warranty coverage: external defects, deformation.
2. Brake pads: Replacement for manufacturing defects. Warranty coverage: detachment of friction material.
3. Brake disc: Replacement within 3 months of installation if disc warping or vibration occurs.
4. Brake lines: 2-year warranty. Warranty coverage: cracking or bulging under correct installation and normal use.
| Piston diameter | Piston area | Brake disc diameter | Brake disc thickness |
| 4*27mm | 23cm² | φ345mm φ380mm | 28mm |
| Caliper weight | Inlet port thread specification | Brake pad area | Caliper length, width, and height |
| 2.9kg | M10*1 | 65cm² | 278*160*77.2mm |
| Applicable wheel hub size | Brake disc specification | Standard retail price |
| 18/19/20inches | 345/380MM | ¥6980 |
MOTVE Braking, Beyond Performance.
