MX5

Starting price: ¥6880

Product category: MOTVE Maituo Brake Caliper Kit

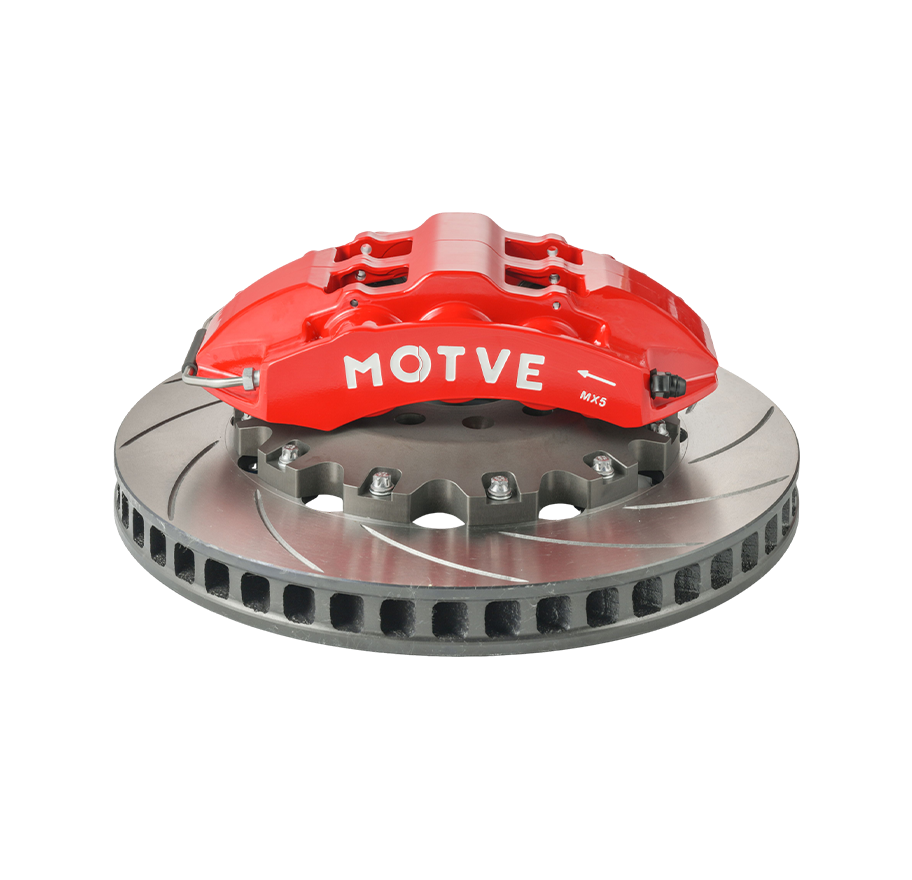

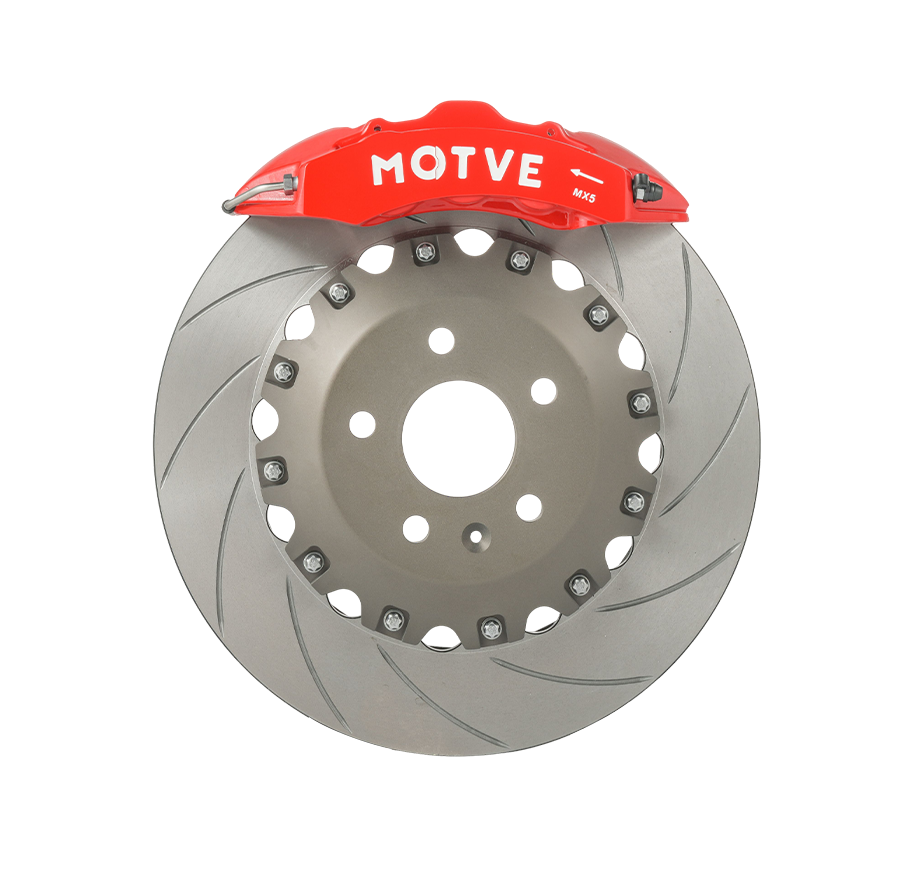

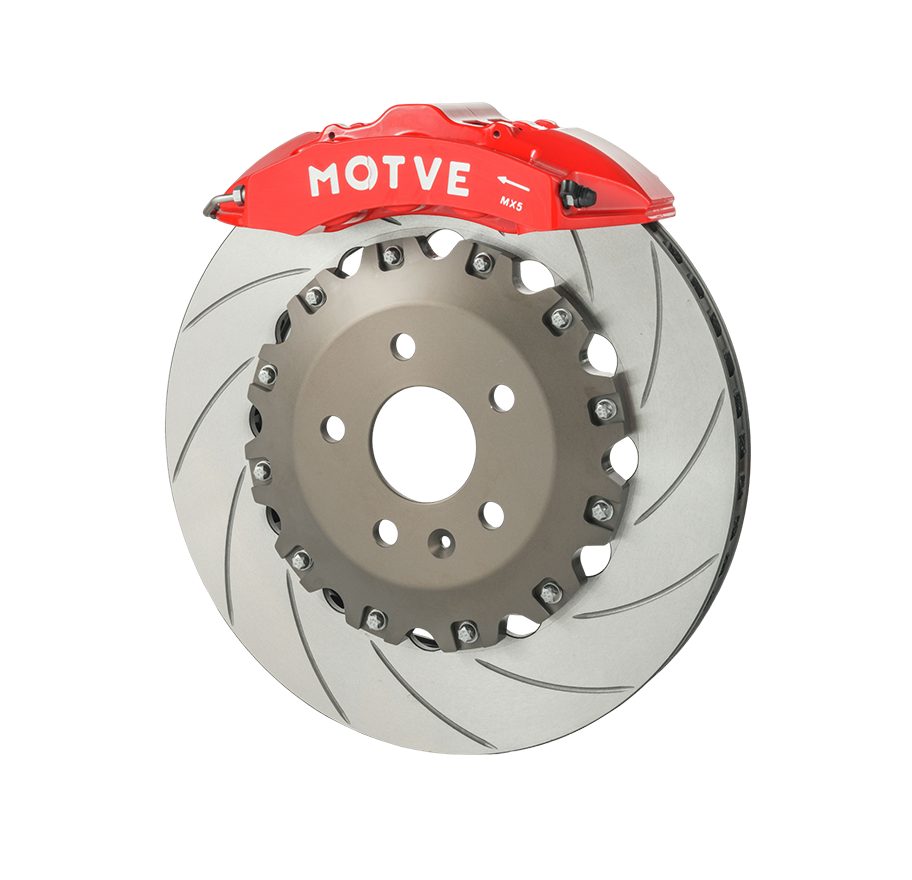

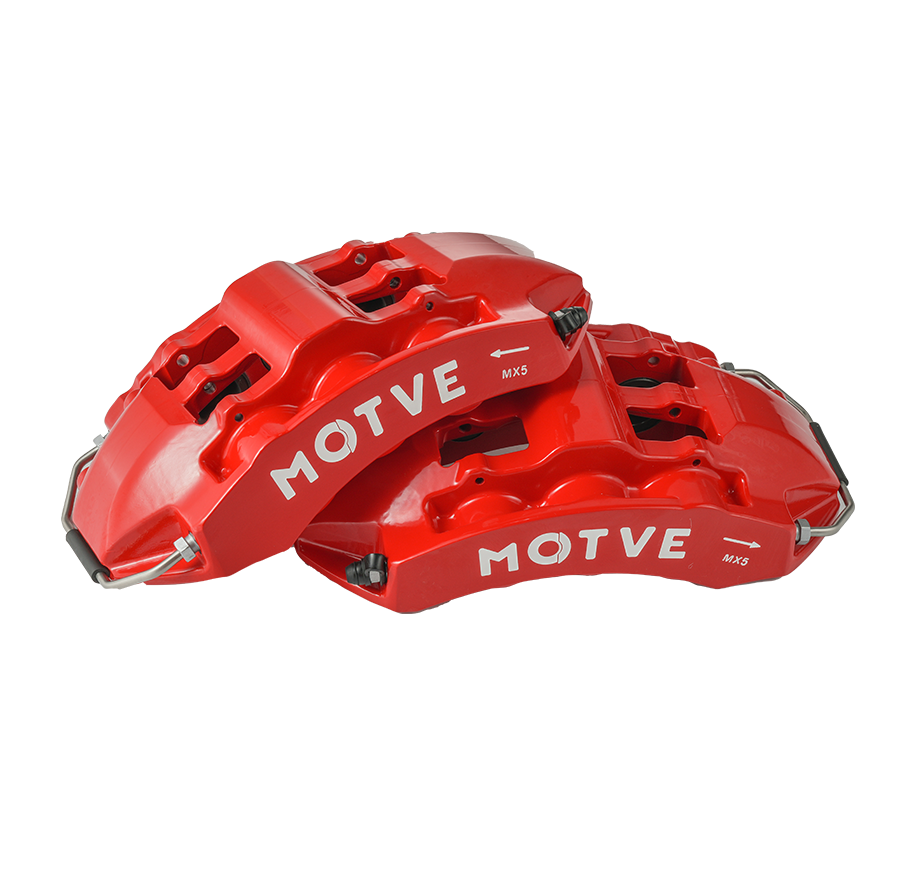

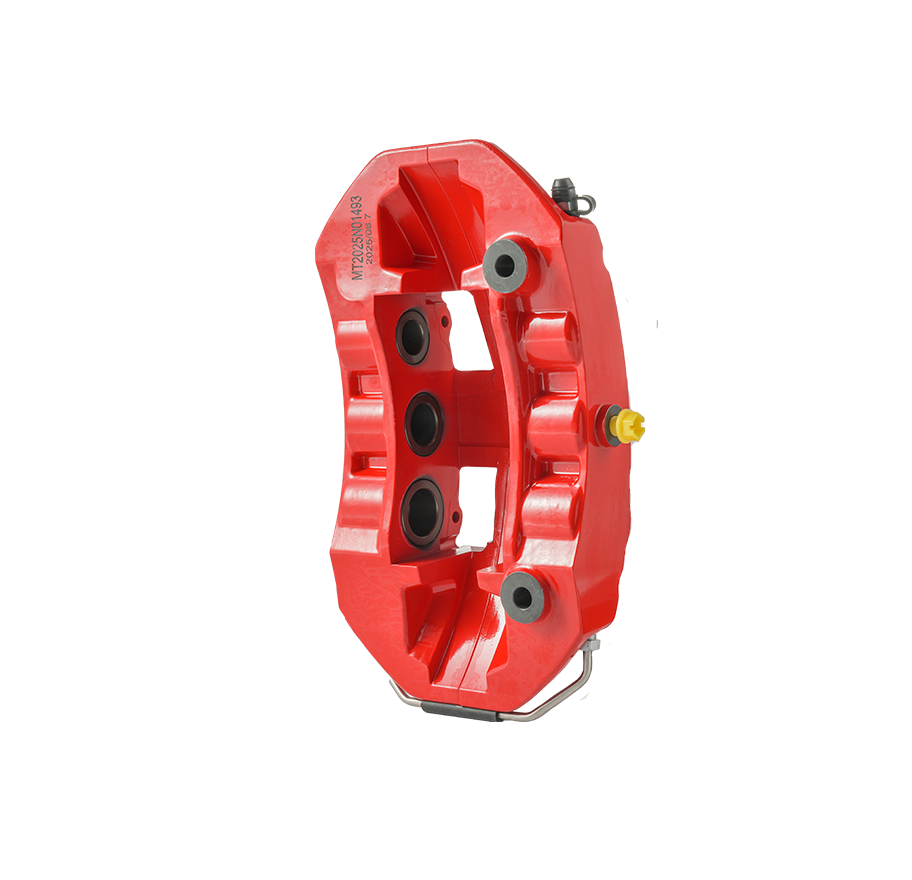

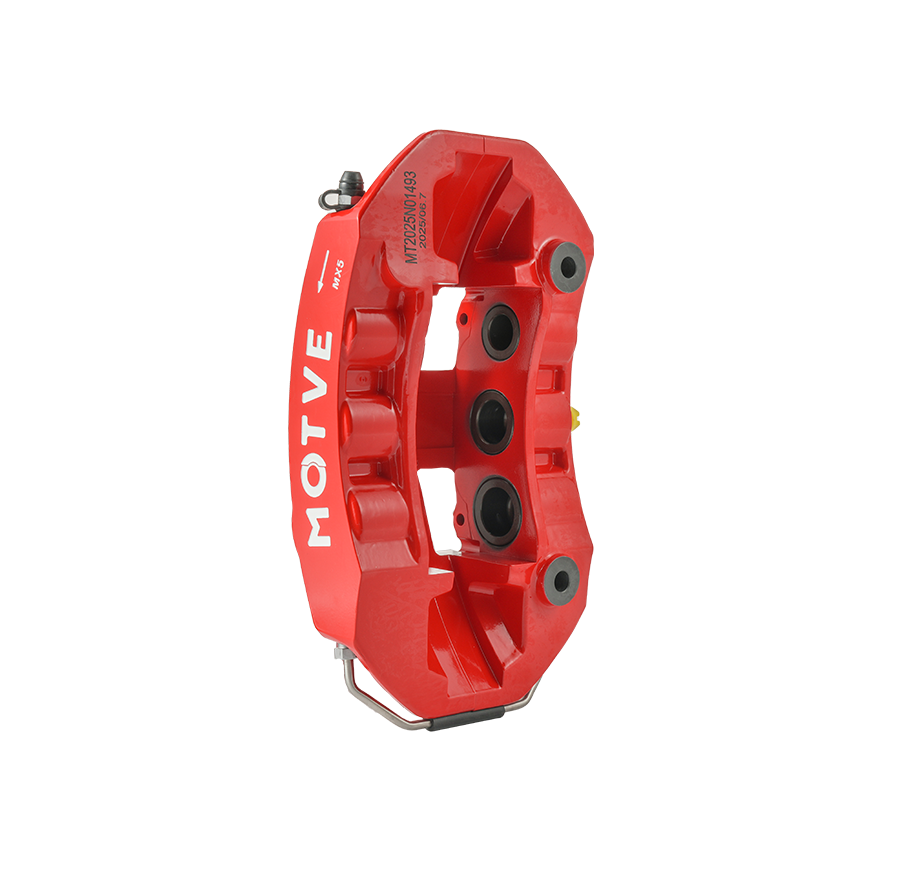

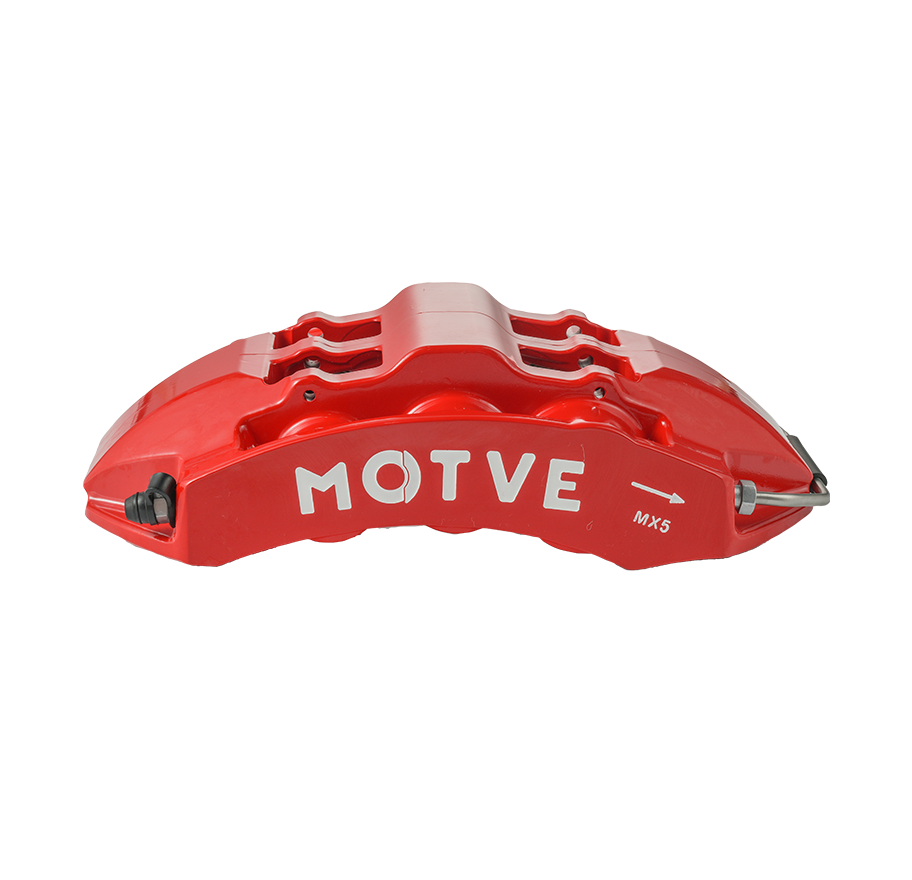

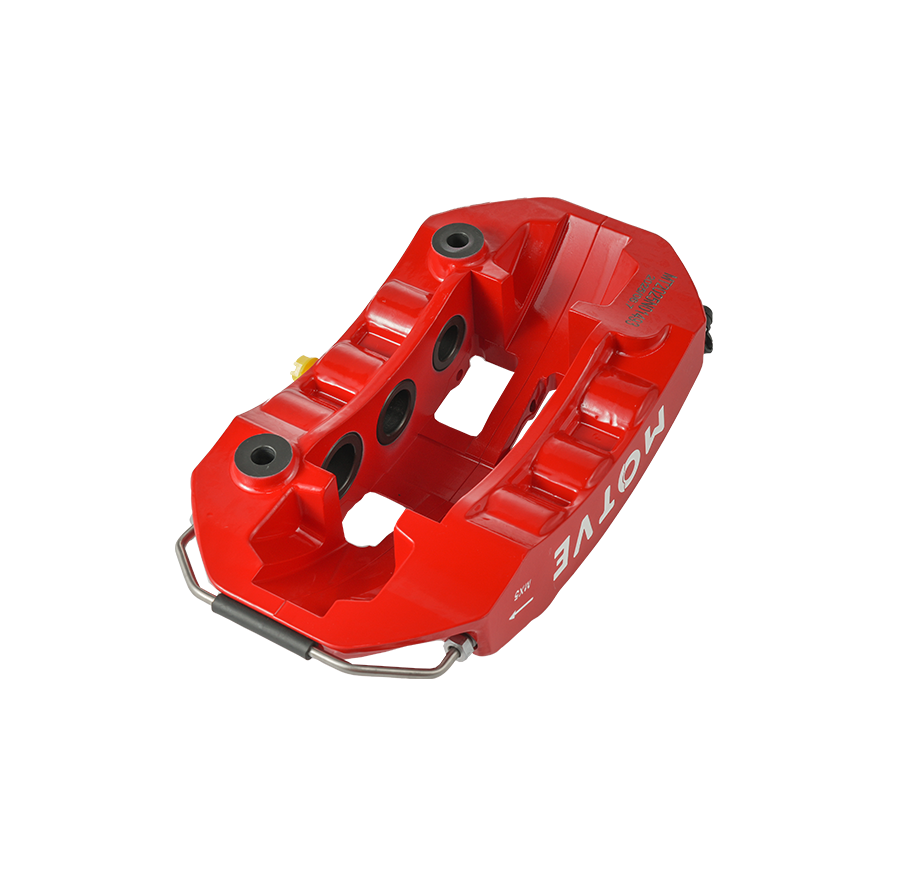

MX5 · Six-Piston (MX5R Rear Six-Piston)

One-piece forged blank with split machining process. Lightweight structure, quick-response racing piston design, small six-piston design, meeting more personalized choices for A-segment vehicles.

Components of the Maituo Brake Kit: caliper, brake pads, brake disc, hat and bracket, brake lines, brake fluid.

1. Caliper main structure: 5-year warranty. Warranty coverage: external defects, deformation.

2. Brake pads: Replacement for manufacturing defects. Warranty coverage: detachment of friction material.

3. Brake disc: Replacement within 3 months of installation if disc warping or vibration occurs.

4. Brake lines: 2-year warranty. Warranty coverage: cracking or bulging under correct installation and normal use.

Available Colors
Inquiry for Customization
Product Specifications
Piston diameterPiston areaBrake disc diameterBrake disc thickness
2*27mm 2*31.8mm 2*34mm46cm²φ332mm φ345mm28mm
Caliper weight

Inlet port thread

specification

Brake pad areaCaliper length, width, and height
2.6kgM10*165cm²272*153.2*78.6mm
Brake disc design
  • Guide Price
    Applicable wheel hub sizeBrake disc specificationStandard retail price

    Price for optional racing pads + Goodridge brake lines

    17inches332MM¥6880¥7480
    18inches345MM¥7180¥7780


    Custom Car Cases
  • ZEEKR 001

    MOTVE Brake MX8 ME4 in gold with black lettering
  • BMW 3 Series

    MOTVE Brake MT6 in yellow with black lettering
  • Lynk & Co 03

    MOTVE Brake MT4 in red with white lettering
  • BYD Qin PLUS

    MOTVE Brake MT4 in yellow with black lettering
