ZEEKR 001
MOTVE Brake MX8 ME4 in gold with black letteringStarting price: ¥6880
Product category: MOTVE Maituo Brake Caliper Kit

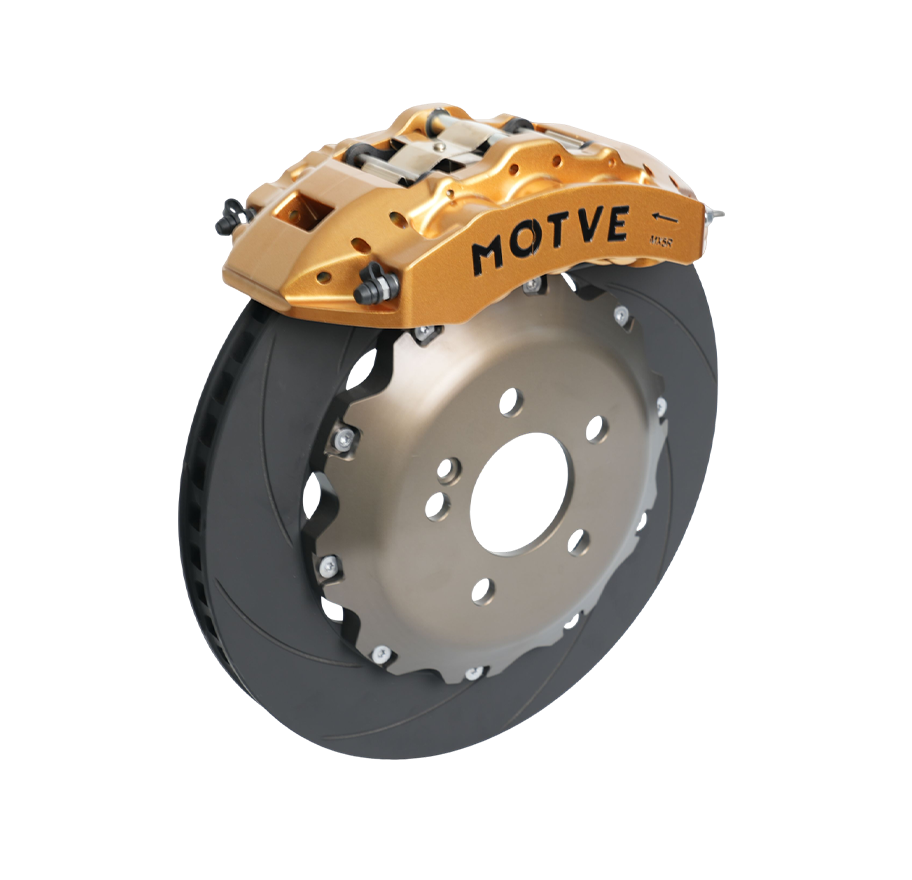

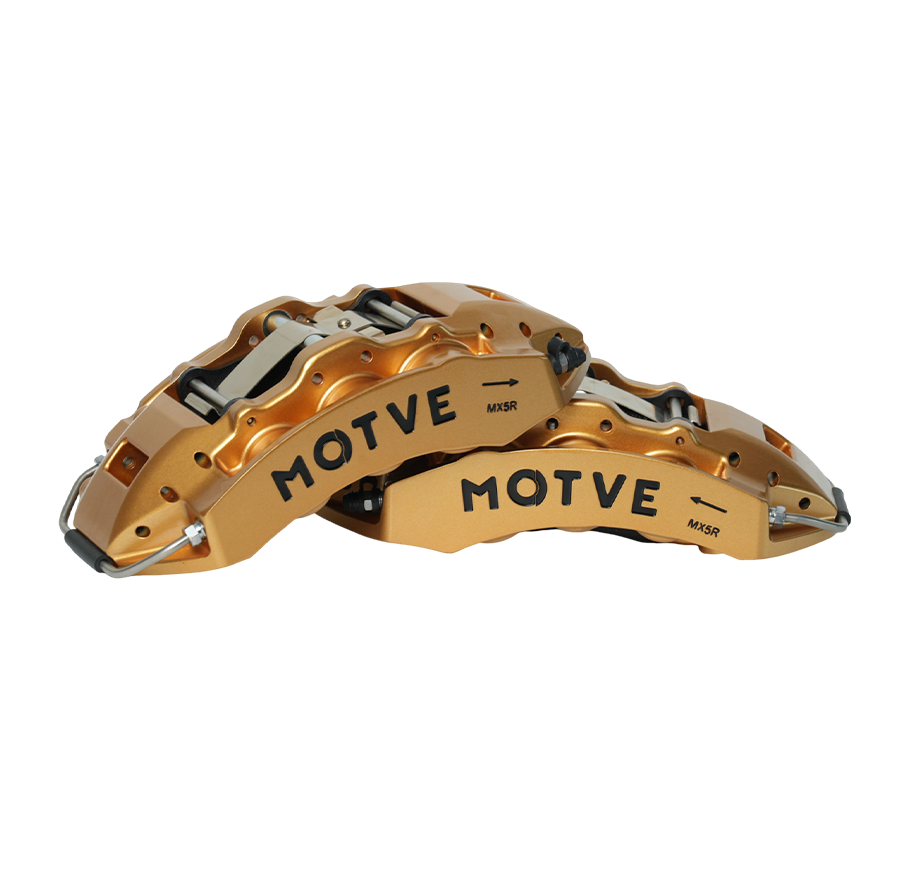

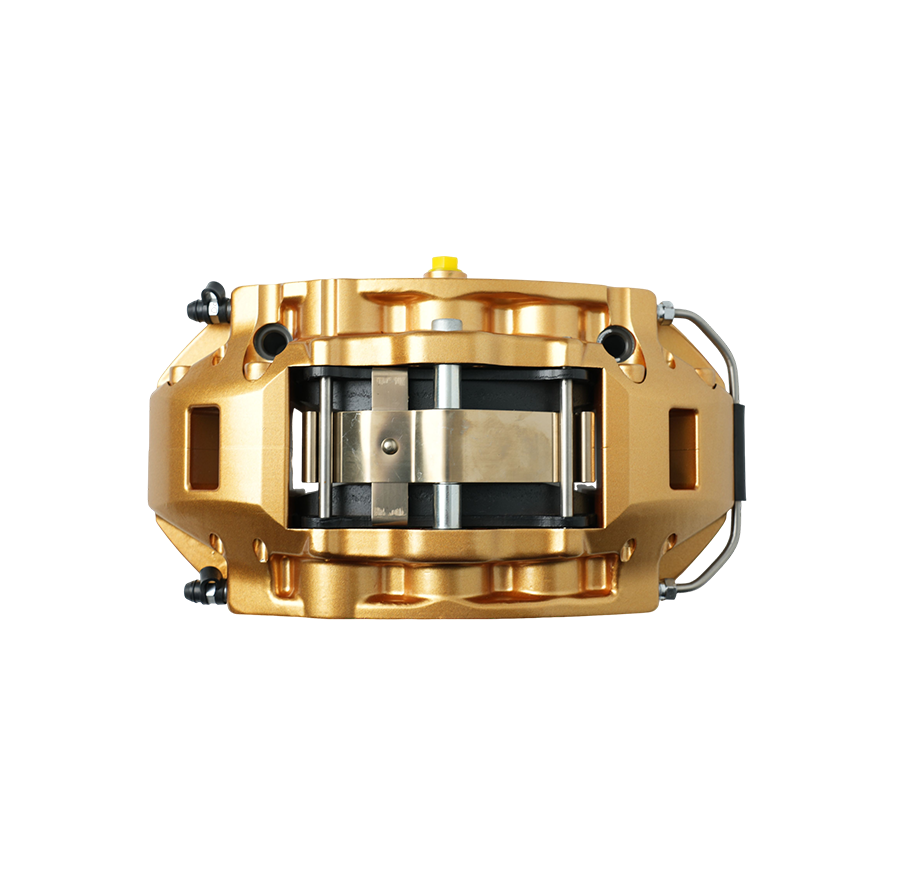

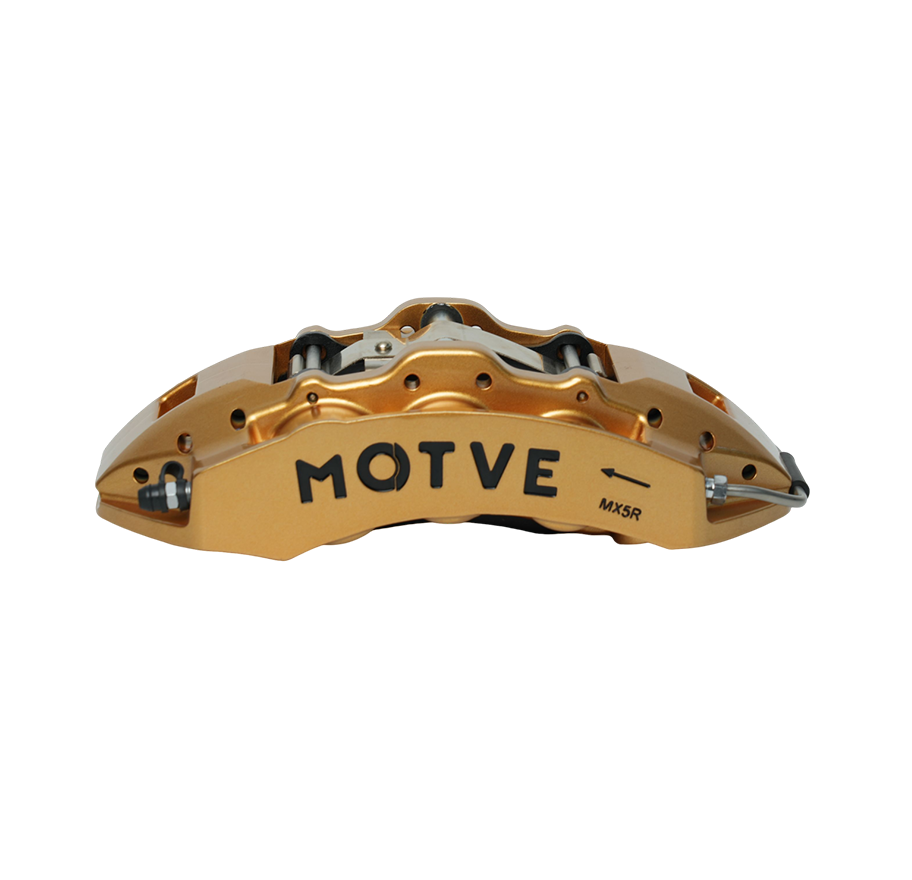

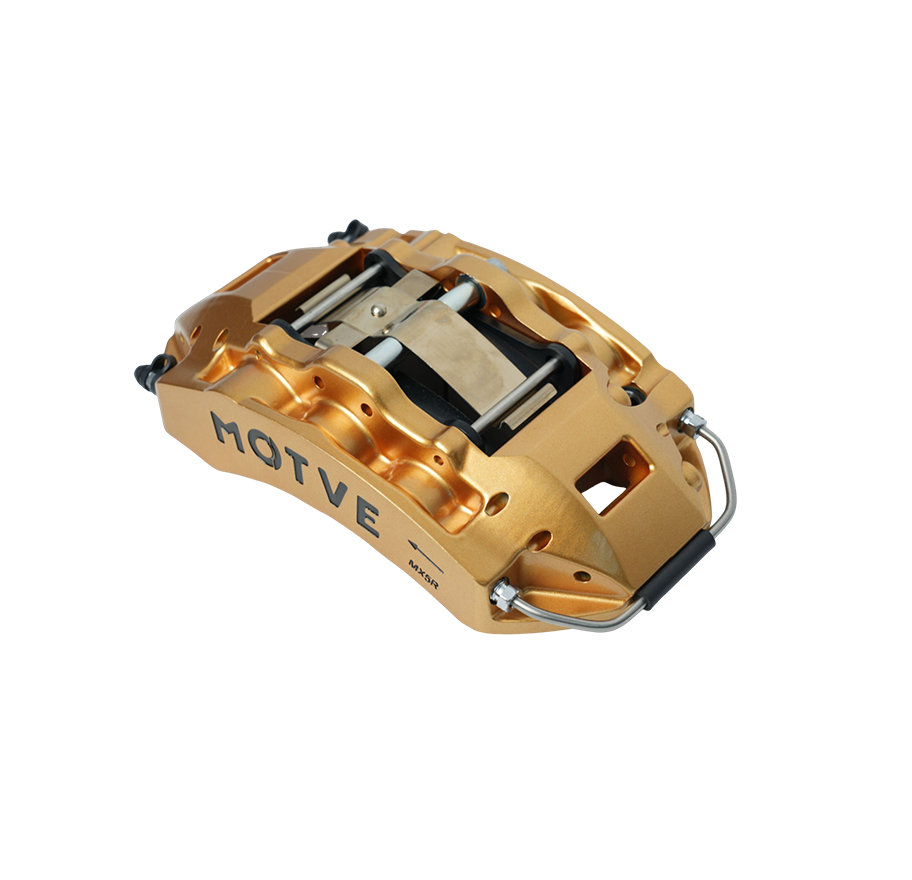

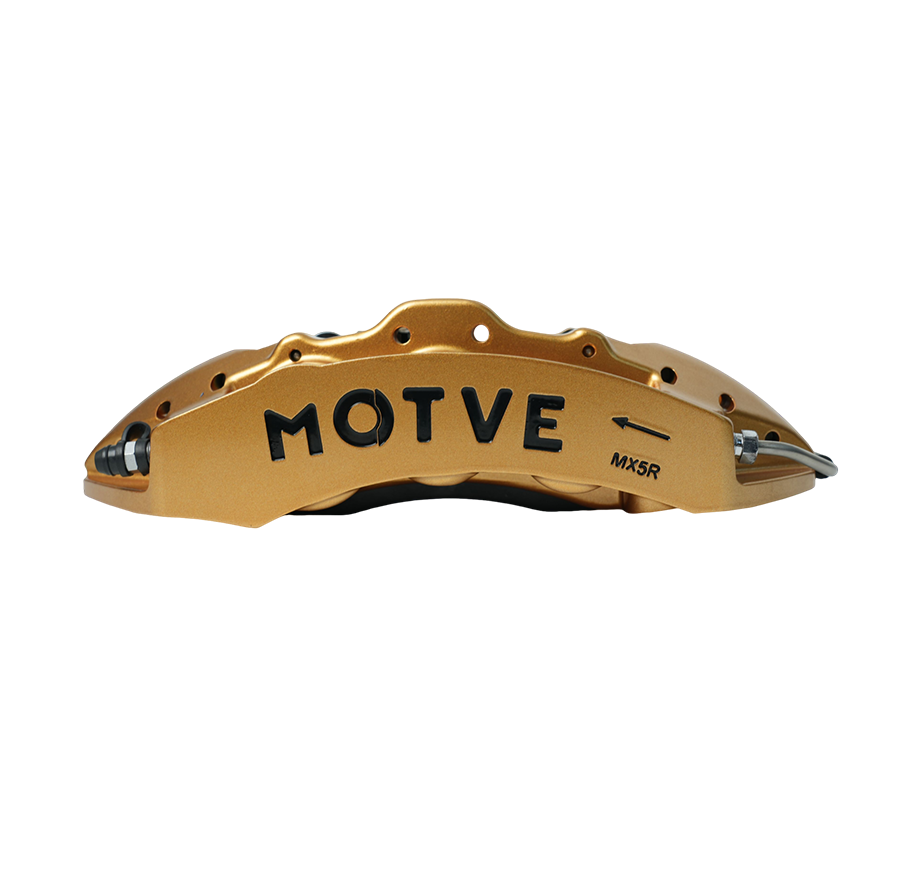

MX5 · Six-Piston (MX5R Rear Six-Piston)
One-piece forged blank with split machining process. Lightweight structure, quick-response racing piston design, small six-piston design, meeting more personalized choices for A-segment vehicles.

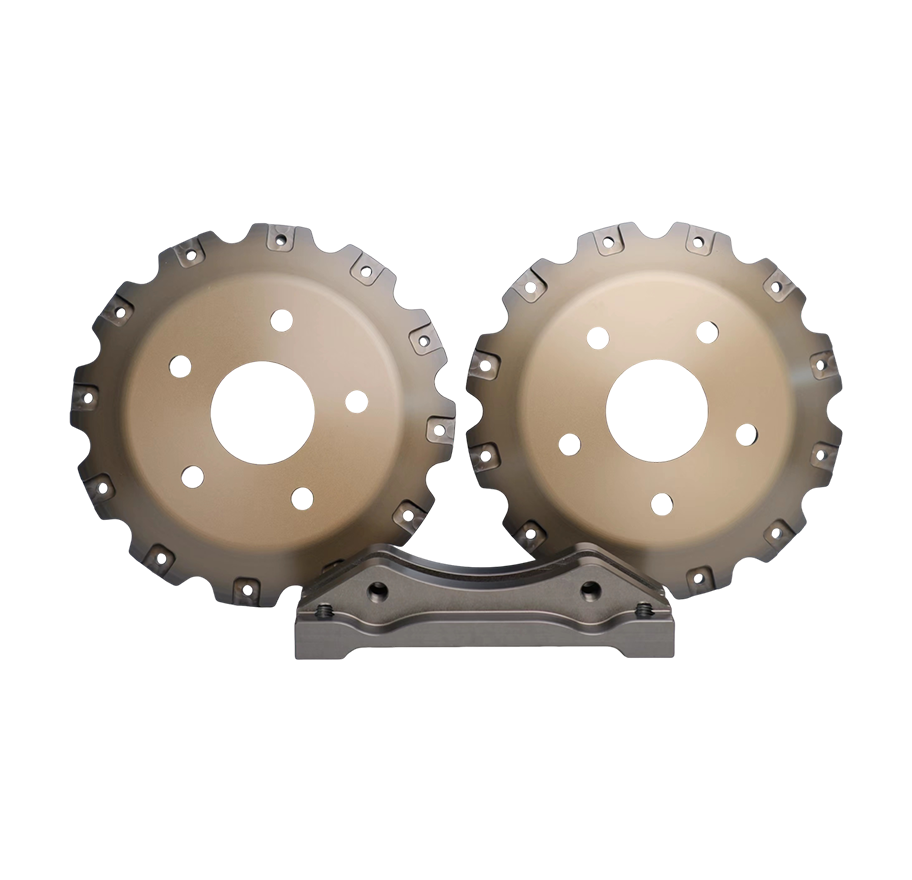

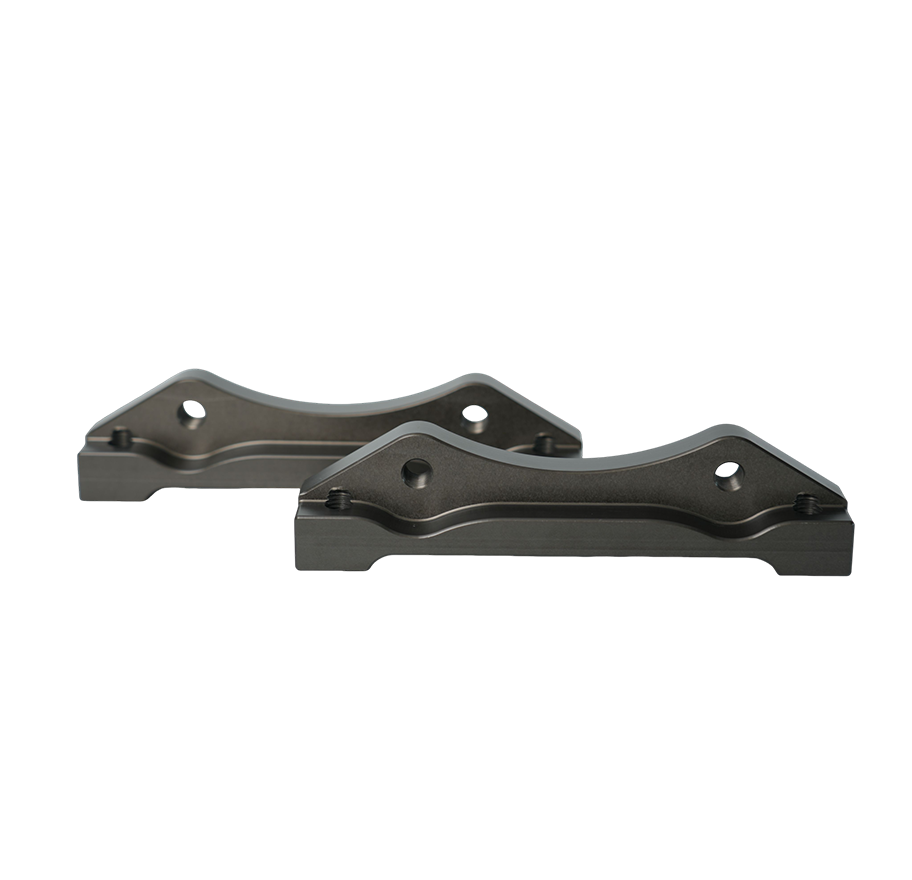

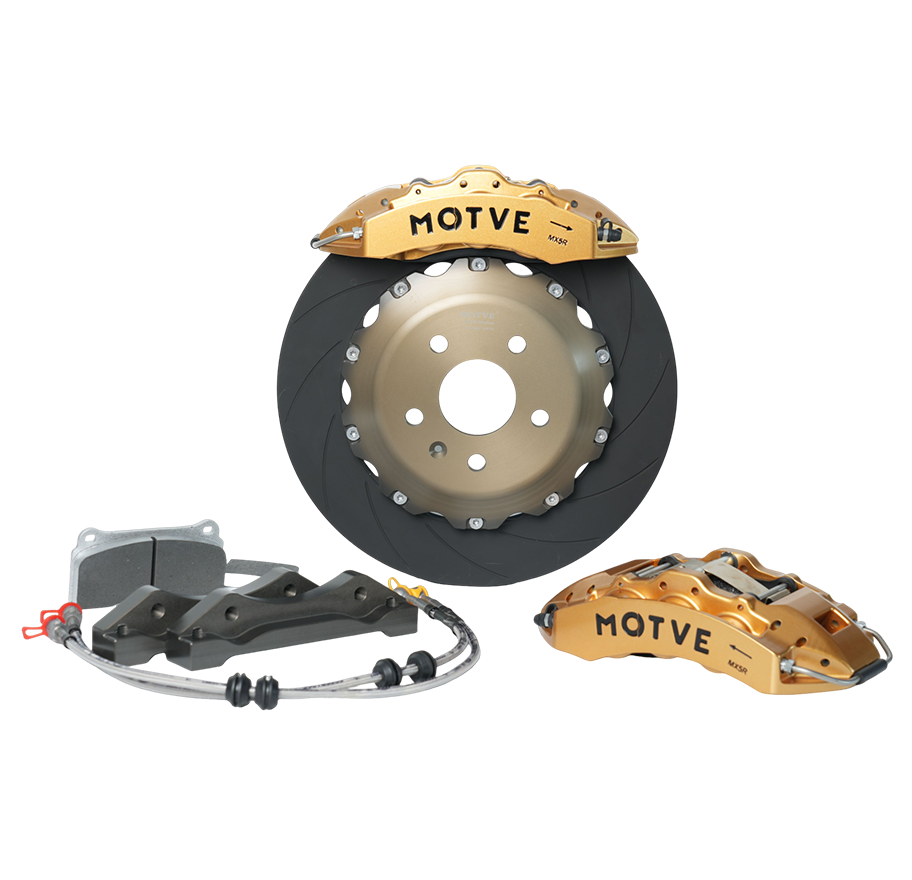

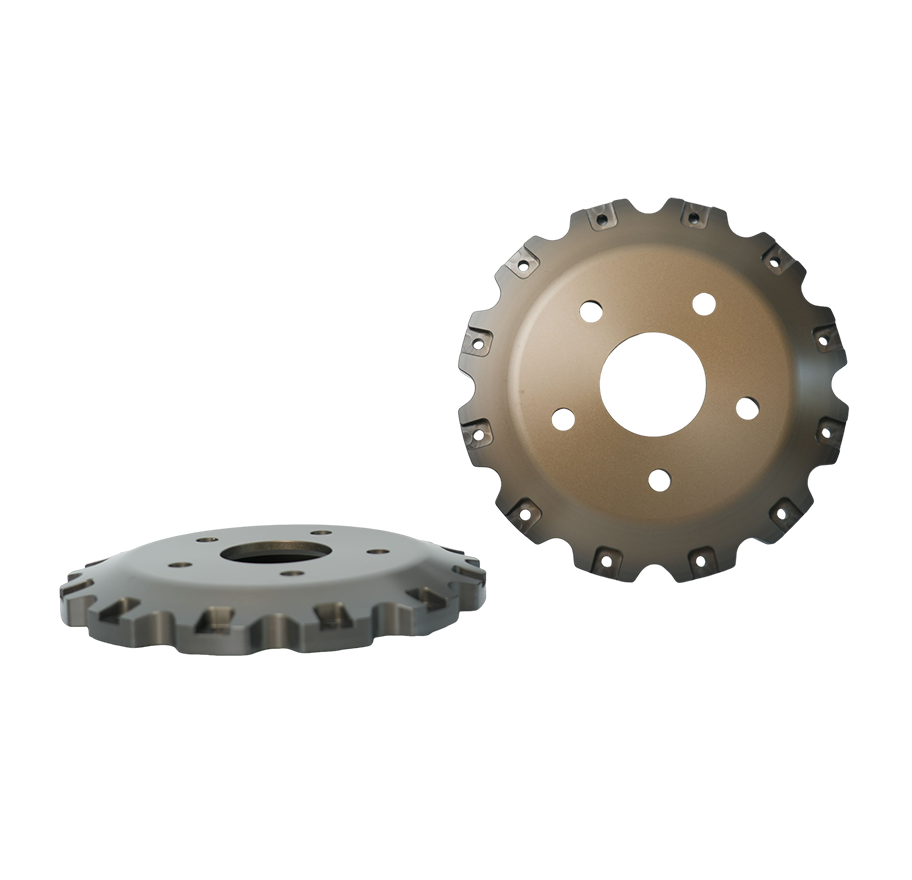

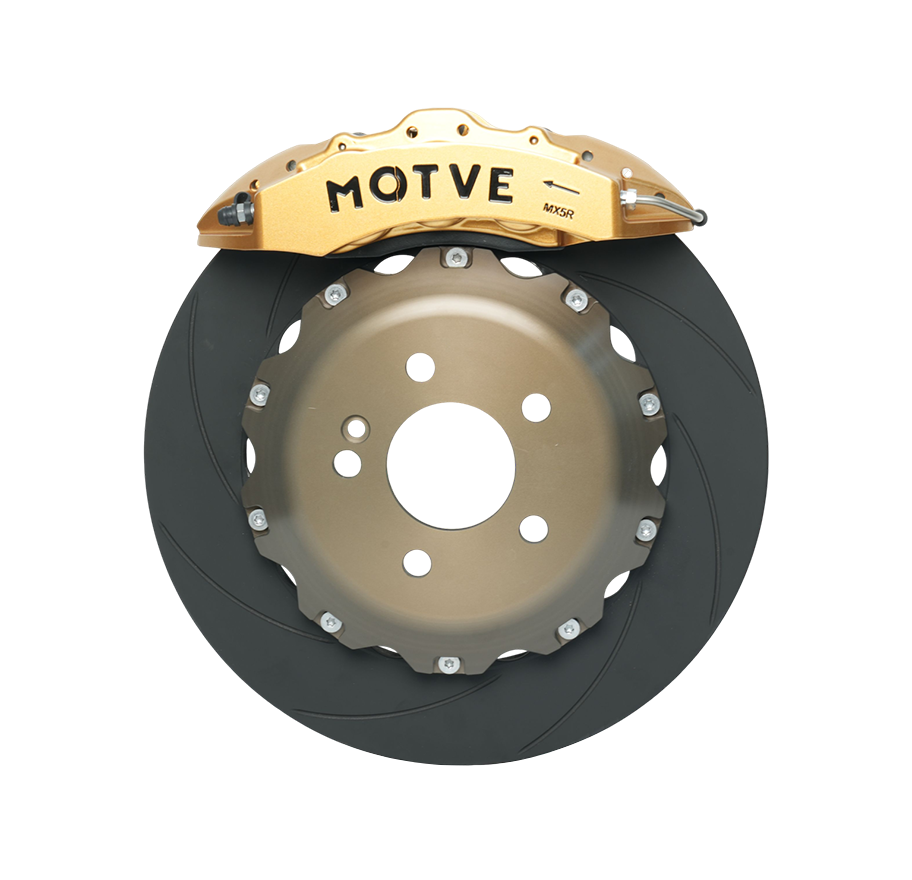

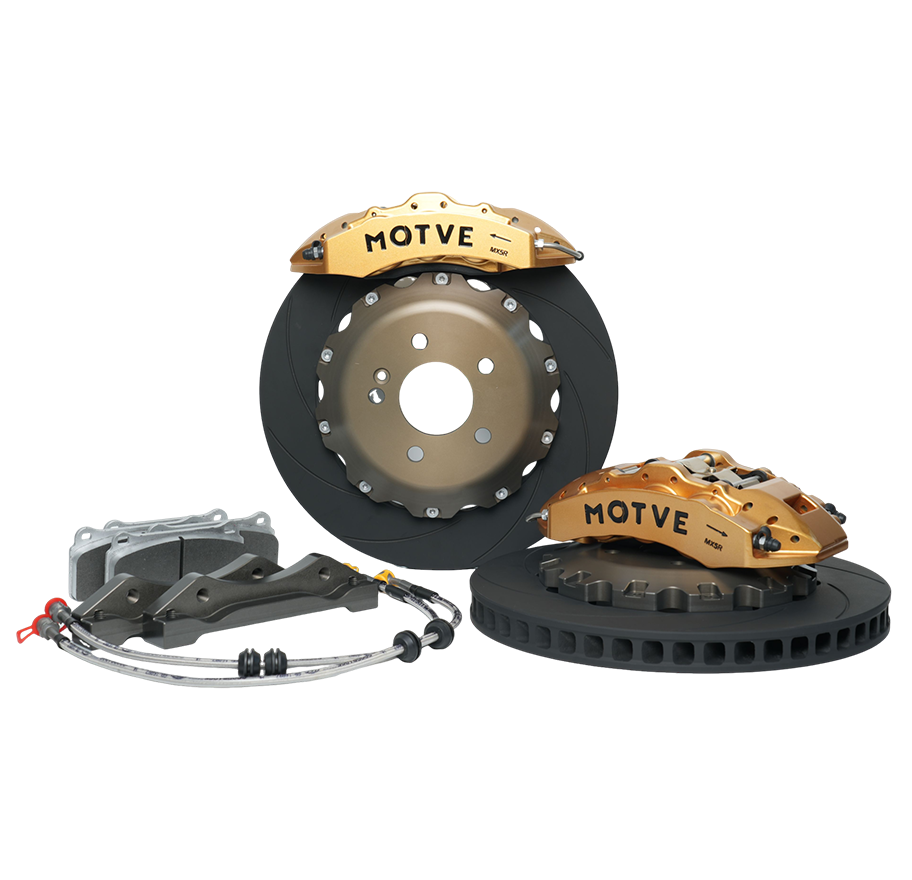

Components of the Maituo Brake Kit: caliper, brake pads, brake disc, hat and bracket, brake lines, brake fluid.
1. Caliper main structure: 5-year warranty. Warranty coverage: external defects, deformation.

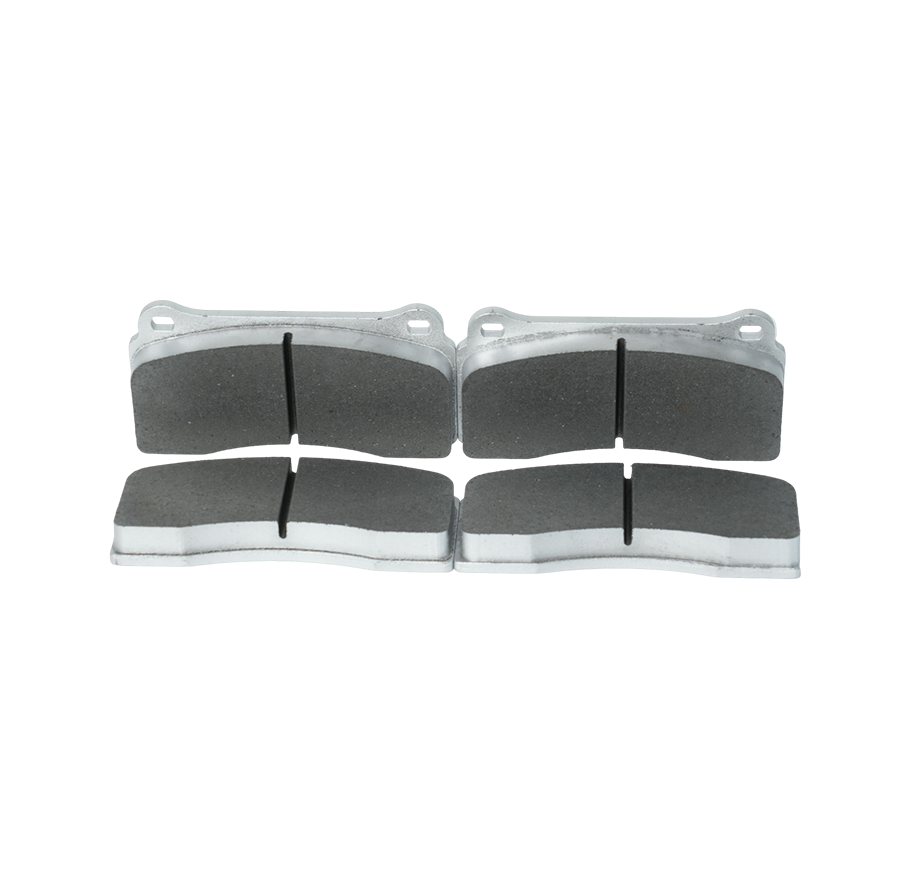

2. Brake pads: Replacement for manufacturing defects. Warranty coverage: detachment of friction material.

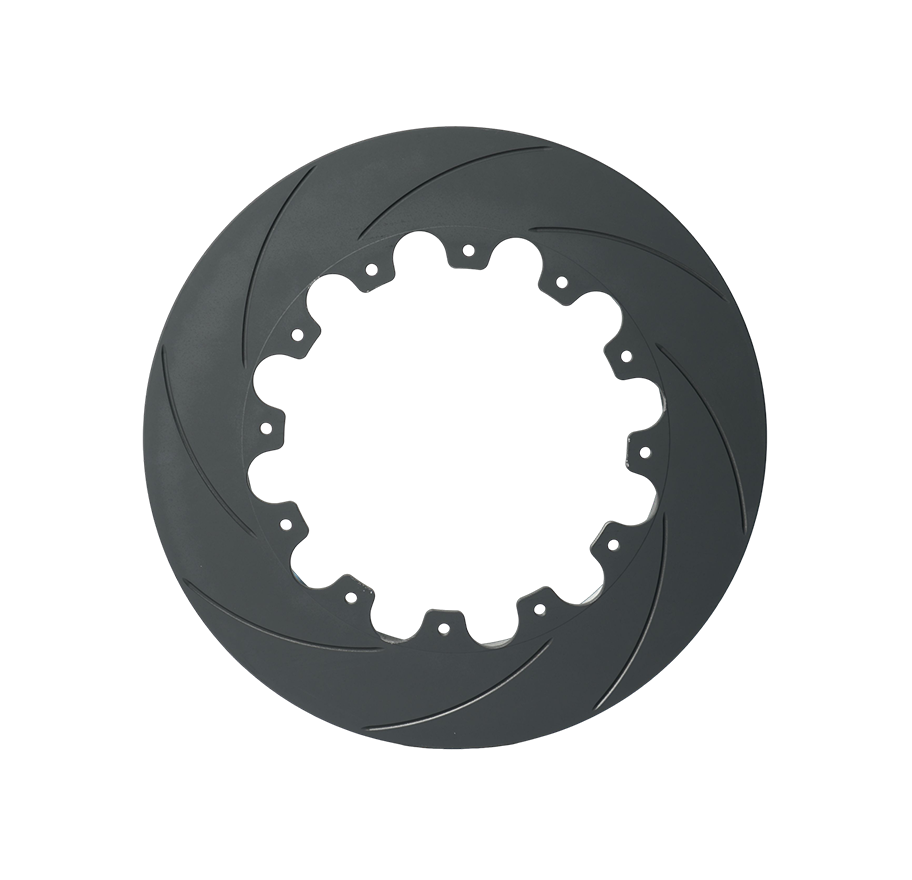

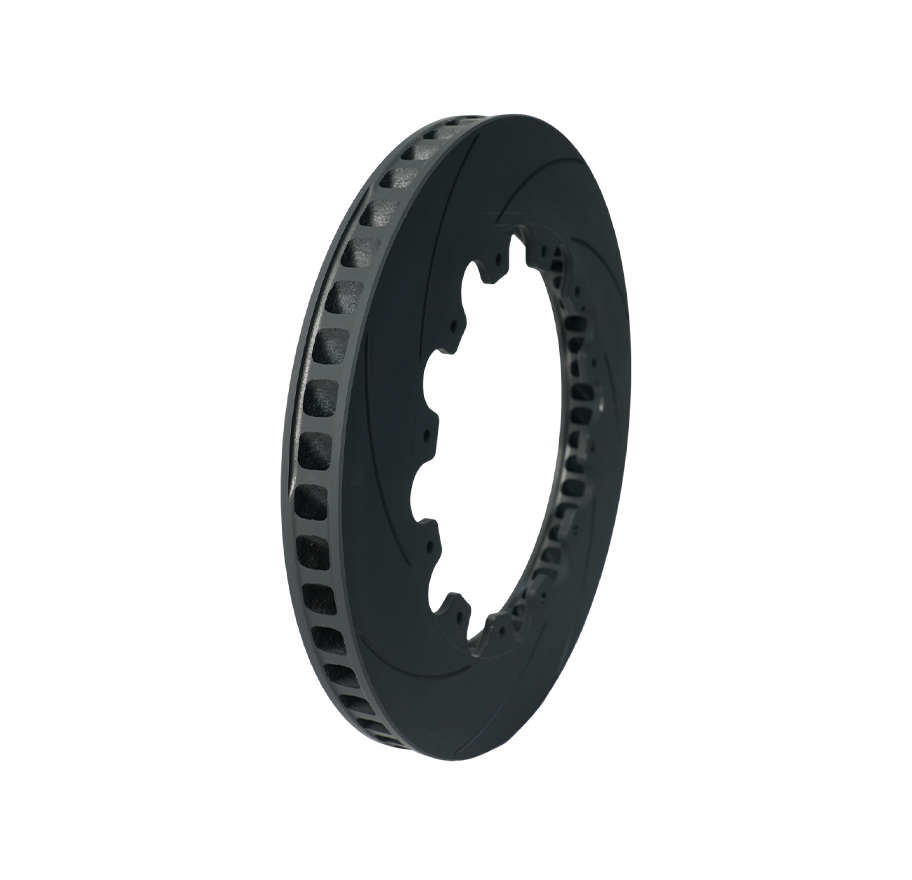

3. Brake disc: Replacement within 3 months of installation if disc warping or vibration occurs.

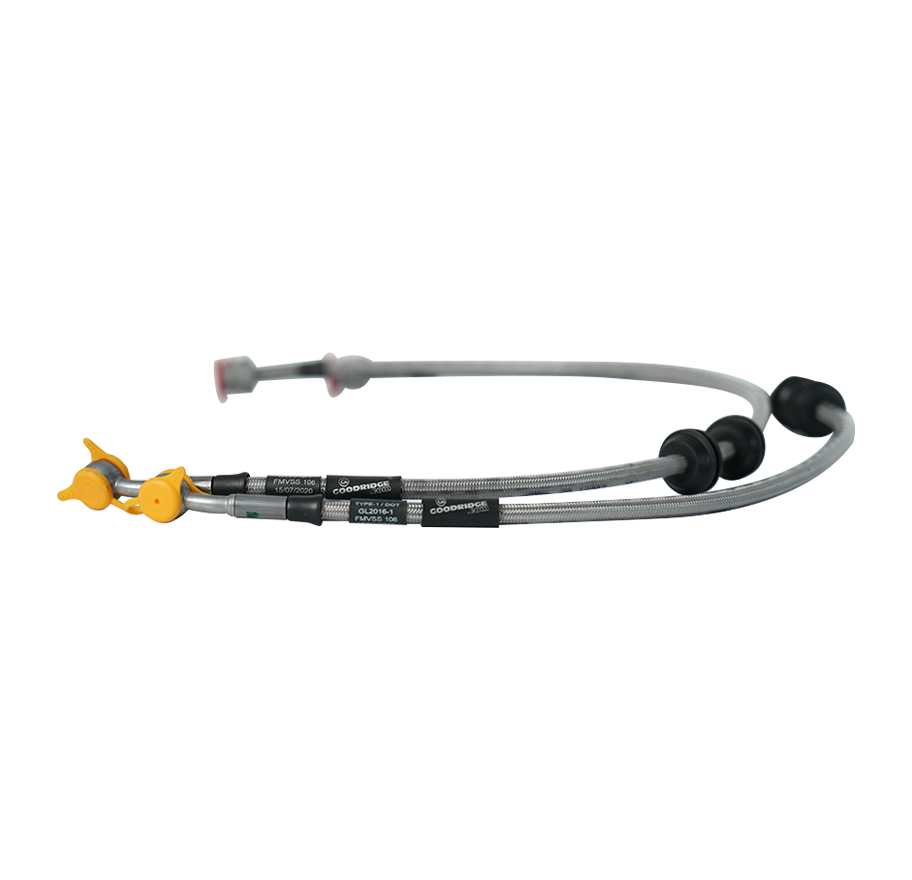

4. Brake lines: 2-year warranty. Warranty coverage: cracking or bulging under correct installation and normal use.
| Piston diameter | Piston area | Brake disc diameter | Brake disc thickness |
| 2*27mm 2*31.8mm 2*34mm | 34cm² | φ345mm φ355mm φ380mm | 28mm |
| Caliper weight | Inlet port thread specification | Brake pad area | Caliper length, width, and height |
| 2.45kg | M10*1 | 65cm² | 270.5*154*77.2mm |




| Applicable wheel hub size | Brake disc specification | Standard retail price |
| 18/19/20inches | 345/355/380MM | ¥6980 |
