ZEEKR 001
MOTVE Brake MX8 ME4 in gold with black lettering
Starting price: ¥8480
Product category: MOTVE Maituo Brake Caliper Kit

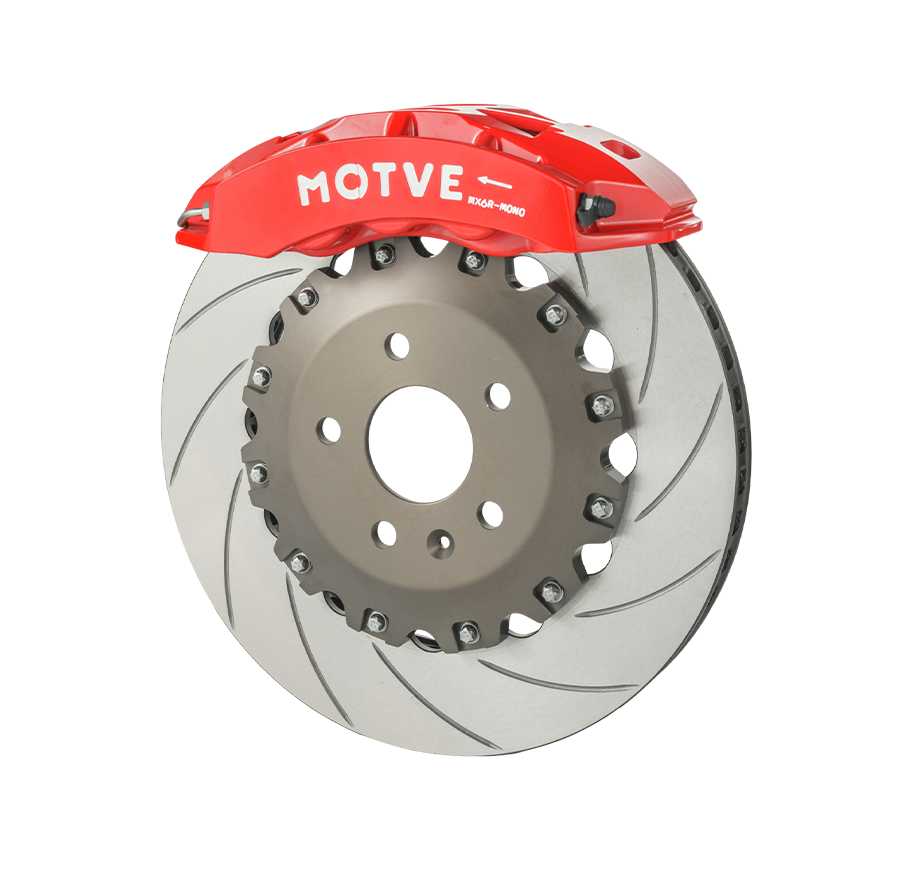

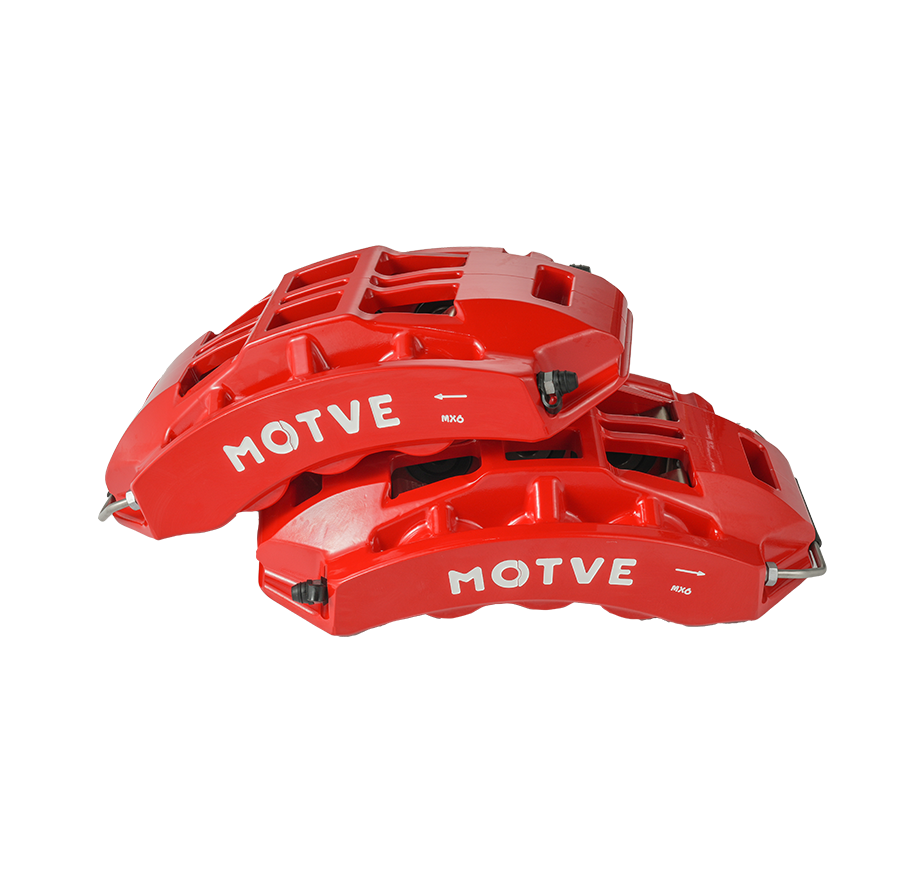

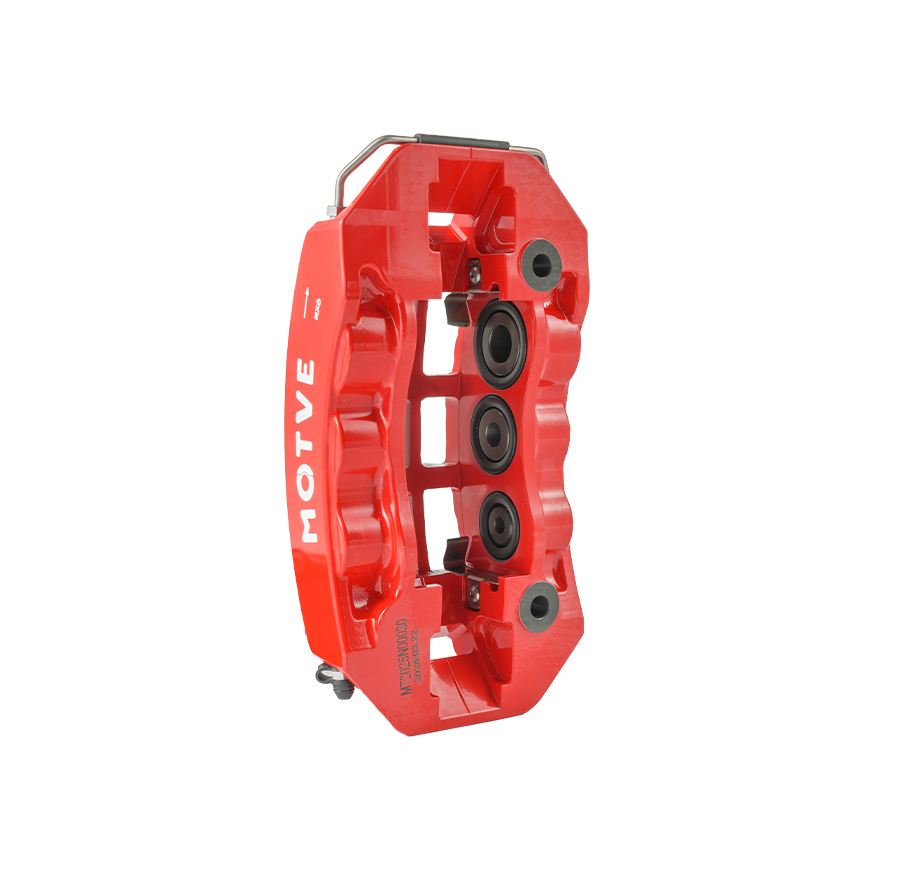

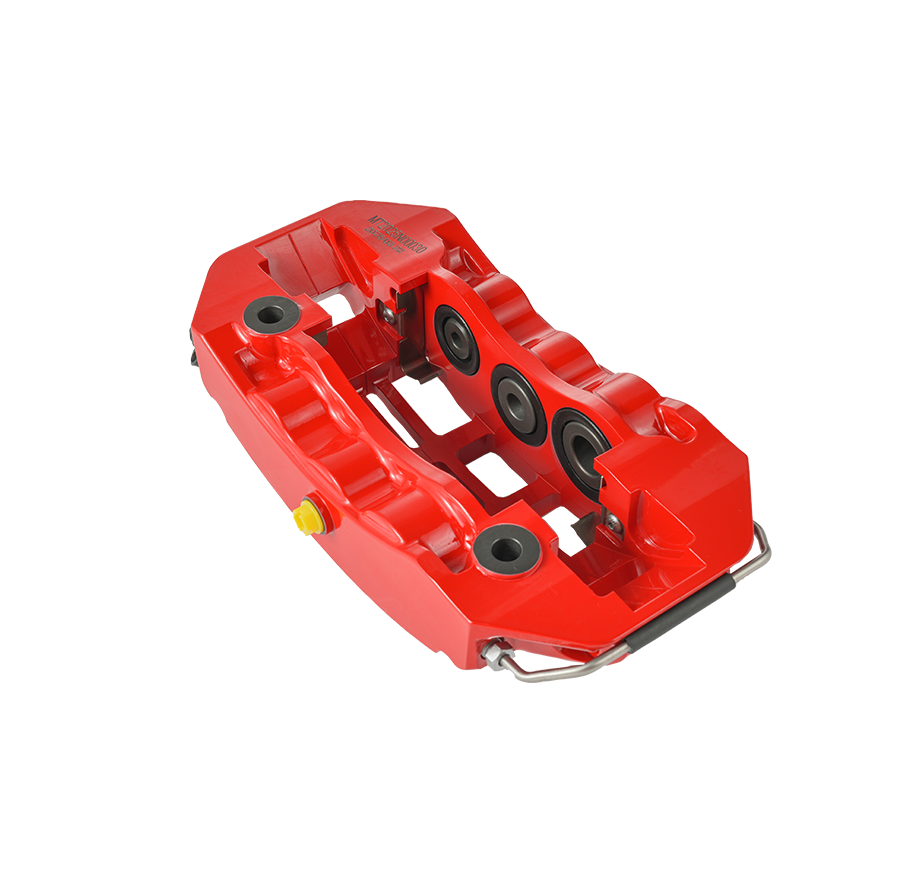

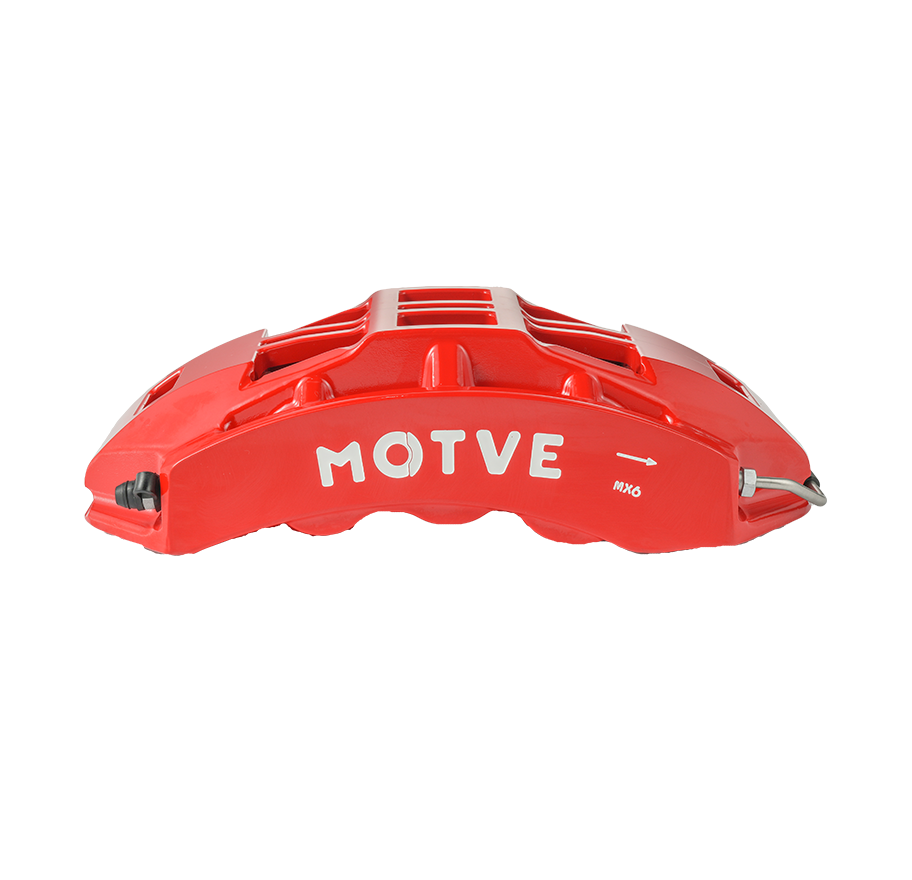

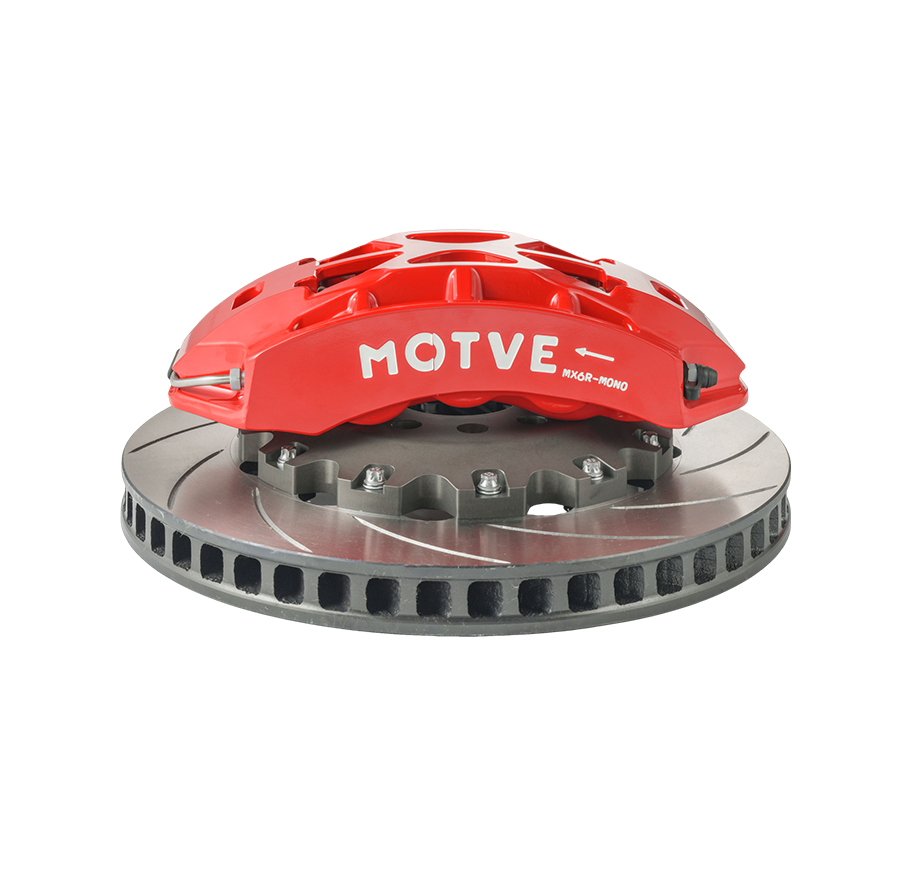

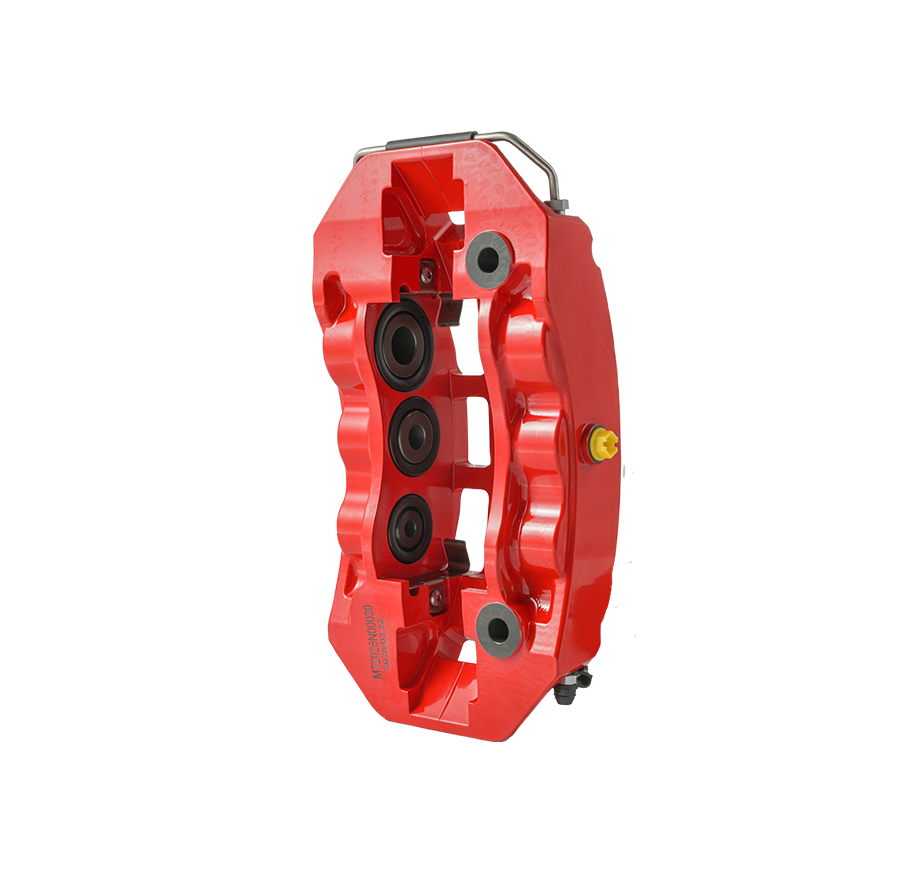

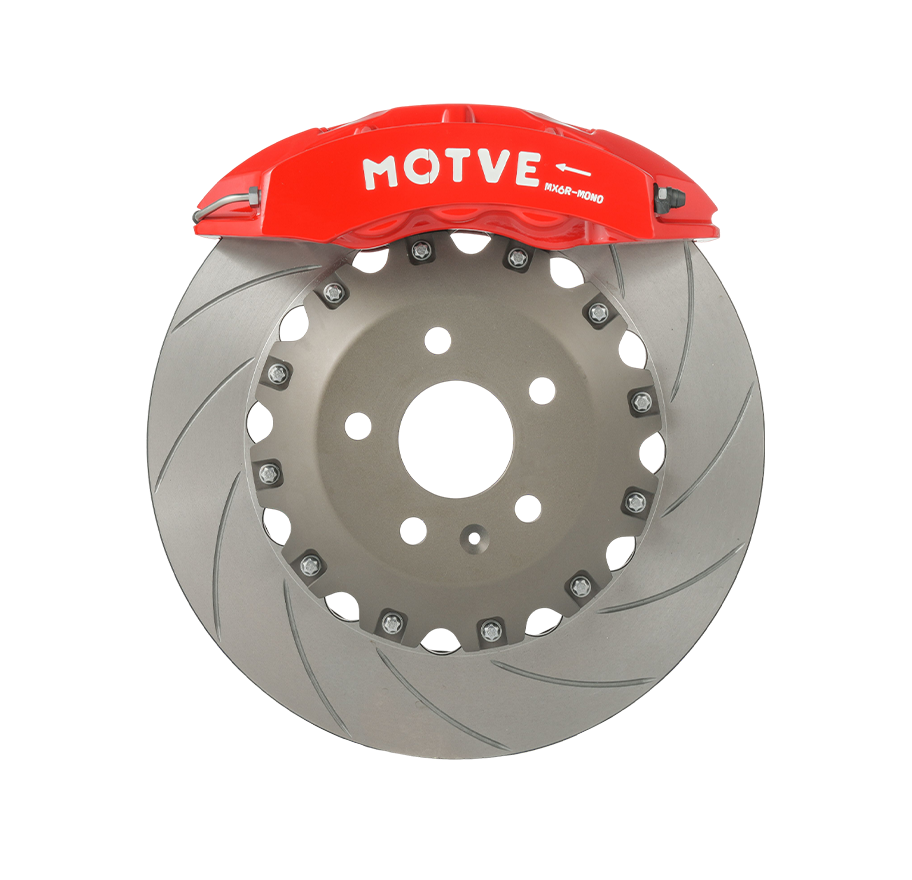

MX6R-MONO · Six-Piston
MX6R-MONO is a one-piece forged product. Six-piston, racing pistons, lightweight. Aesthetic structural design, suitable for racing. Recommended for B-segment vehicles.
Components of the Maituo Brake Kit: caliper, brake pads, brake disc, hat and bracket, brake lines, brake fluid.
1. Caliper main structure: 5-year warranty. Warranty coverage: external defects, deformation.
2. Brake pads: Replacement for manufacturing defects. Warranty coverage: detachment of friction material.
3. Brake disc: Replacement within 3 months of installation if disc warping or vibration occurs.
4. Brake lines: 2-year warranty. Warranty coverage: cracking or bulging under correct installation and normal use.
| Piston diameter | Piston area | Brake disc diameter | Brake disc thickness |
| 2*27mm 2*31.8mm 2*38mm | 50cm² | φ355mm φ378mm | 32mm 34mm |
| Caliper weight | Inlet port thread specification | Brake pad area | Caliper length, width, and height |
| 3.1kg | M10*1 | 77.4cm² | 298.2*154.5*88mm |
MOTVE Braking, Beyond Performance.
